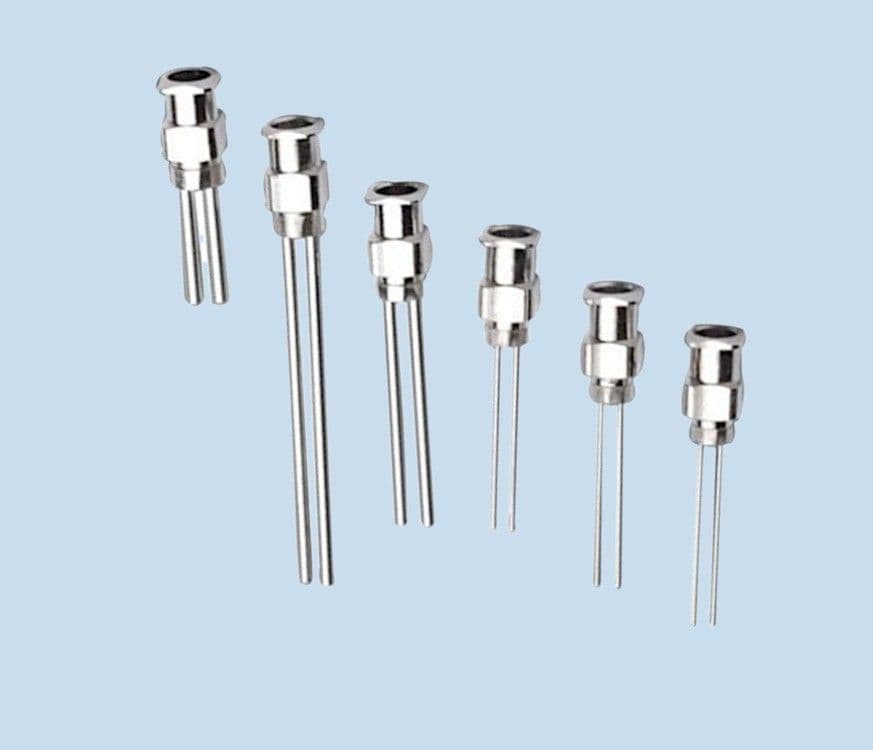

Precision blunt end dual steel tubes to steel luer lock hub. Use this tip for dispensing adhesives, solvents, glues, primers, activators and many other fluids. Especially useful for aggressive solvents. Blunt end twin metal tubes with a 1/4", 1/2", 1" or 1.5" length. The ADSS needle series consist of a steel luer lock hub with dual stainless steel precision shafts. This high quality line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow.

Suitable for dispensing most fluids, SMT adhesives and solvents. Industrial grade safe for use to 100 psi. Ideal for use on robot dispensing systems as tips are cut high precision for total consistency. Supplied in a sealed pack of 12 tips. Dispensing tips are designed to work with standard syringes and fittings. These tips are fully compatible with most low, medium and high viscosity fluids, adhesives, inks, pastes, gels and lubricants.

Part ID: AD25DSS
Materials: Nickel Plated Brass to Stainless Steel Type 304
Colour: Silver
Inner Diameter: 0.010" - 0.26mm
Outer Diameter: 0.020" - 0.52mm
Tube Lengths: 0.25" - 6.35mm, 0.50" - 12.7mm, 1.00" - 25.4mm, 1.5" - 38.1mm
Maximum Pressure: 100 PSI
Connection: Luer Lock
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Pack Size: 12

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
