Techcon TE Series 45° Bent Stainless Steel Dispensing Tip - TE725050B45PK

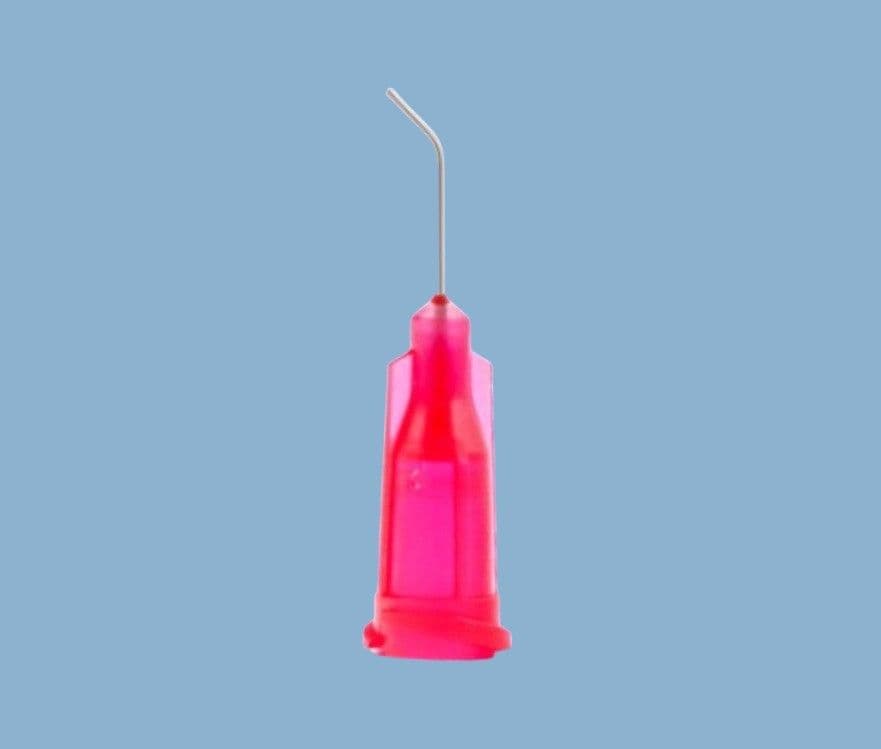

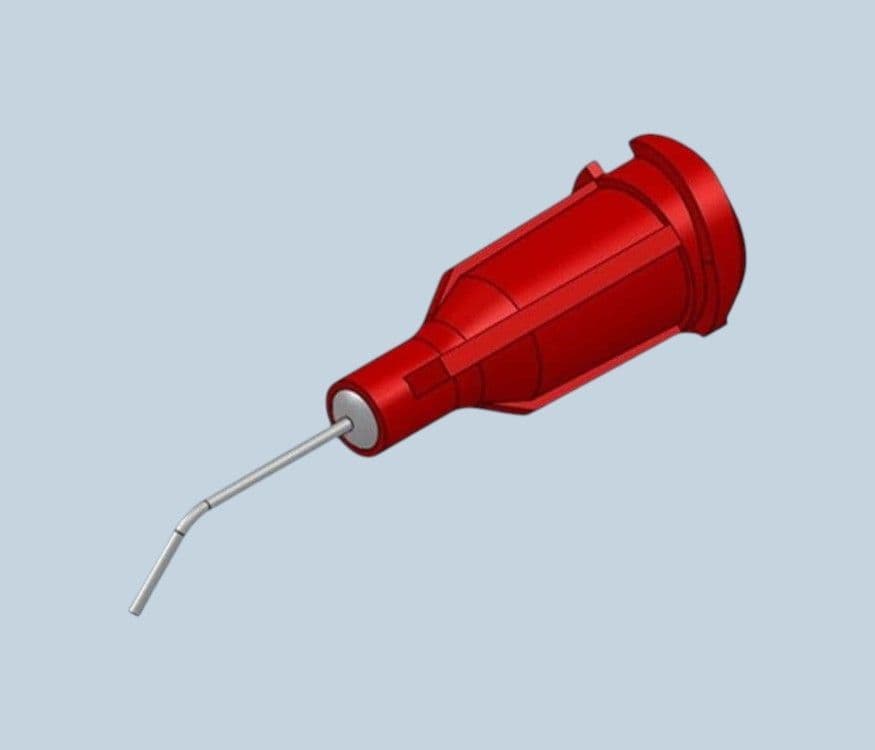

The Techcon TE Series precision dispensing tip features a burr‑free, electro‑polished stainless steel tube, polypropylene double‑helix luer lock hub. This industrial grade tip includes a factory‑formed 45° bend, providing exceptional access to tight, angled or obstructed dispensing areas where straight tips cannot reach.
The 0.50" (12.7mm) stainless tube, 45° angle, making it ideal for precision application of adhesives, solvents, glues, primers, activators and other production fluids. The UV‑filter hub protects UV‑curable adhesives from premature exposure, ensuring consistent curing and improved process reliability.
Certified silicone‑free, chloride‑free and safe for use up to 100 psi, this tip delivers smooth, unobstructed flow for high‑accuracy dot, bead and fill applications in electronics assembly, medical device manufacture, automotive production and general industrial dispensing.
Key Features
- 45° bent stainless steel shaft for angled and hard-to-reach dispensing
- Burr-free, electro-polished stainless steel for smooth, consistent flow
- Double-helix polypropylene luer lock hub for secure, leak-free attachment
- UV-filter hub protects UV-curable adhesives
- Tapered internal hub design reduces restriction and improves flow efficiency
- Industrial grade, silicone-free and chloride-free
- Safe for use up to 100 PSI
- Colour-coded hub for easy gauge identification
- Ships direct from stock in sealed labelled packs with batch codes
Technical Specifications
- Part ID: TE725050B45PK
- Brand: Techcon
- Materials: Polypropylene / Stainless Steel
- Hub Colour: Red
- Tube ID: 0.010" (0.25mm)
- Tube OD: 0.020" (0.51mm)
- Tube Length: 0.50" (12.7mm)
- Bend Angle: 45°
- Maximum Pressure: Up to 100 PSI
- Details: Industrial Grade, Silicone-Free
- Commodity Code: 90289090
Applications - Ideal for dispensing:
- General adhesives
- UV cure adhesives
- Epoxies and pre-mixed fluids
- Solvents, primers and activators
- Glues and bonding agents
- Lubricants and specialty industrial fluids
Performance & Flow Control
The TE Series hub features a tapered internal geometry where the stainless shaft meets the hub, reducing turbulence and improving flow efficiency. This design allows operators to use lower dispensing pressures while maintaining consistent bead size, dot placement and repeatable shot accuracy - even with the 45° bent tube.
Industrial Dispensing Solutions
Adhesive Dispensing Ltd supply a complete range of precision dispensing equipment for almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies. The Techcon TE Series integrates seamlessly with pneumatic dispensers, manual syringe guns and automated production systems.
Choose TE Series 45° bent stainless steel dispensing tips for reliable, high‑precision fluid control in electronics assembly, medical device manufacturing, automotive production and industrial bonding applications.
