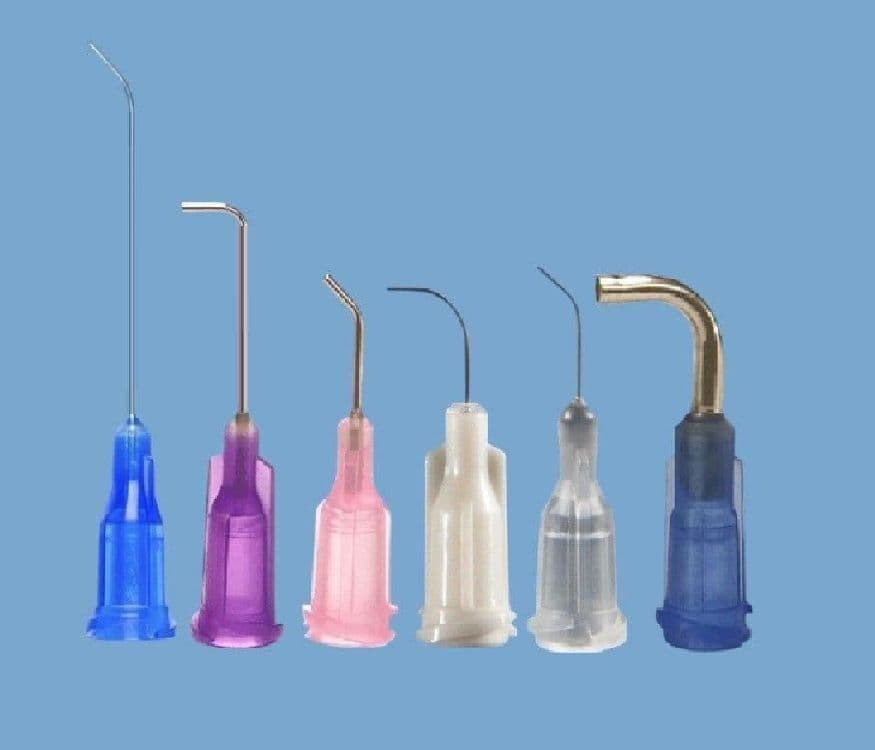

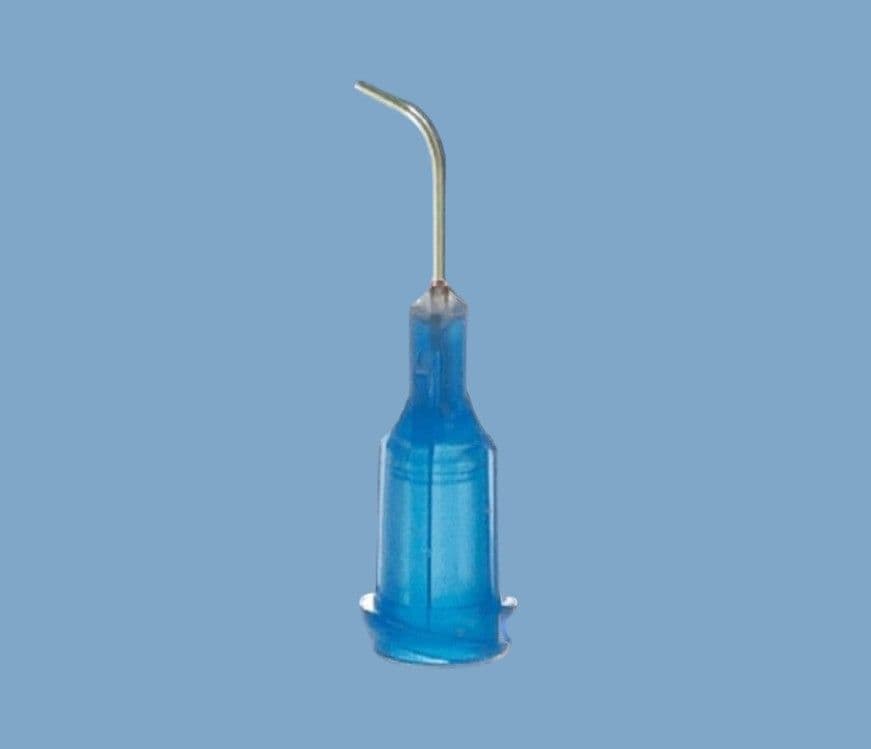

Precision stainless steel burr-free tube to moulded colour coded polypropylene hub with double-helix luer lock. Use this tip for dispensing adhesives, solvents, glues, primers, activators and others. A 60 degree angle bent stainless shaft length of 0.50", 1" or 1.5". UV filter hub protects UV cure adhesives.
The AD needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Use these tips for applying most liquids for high precision controlled dispensing.
Tips are colour coded for gauge size. The tip features a tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. These tips ship direct from stock.
Part ID: AD72205060, AD72210060, AD72215060
Material: Polypropylene/ Stainless Steel
Hub Colour: Blue Hub
Tube ID: 0.016" (0.41 mm)
Tube OD: 0.028" (0.71 mm)
Tube Length: 0.50" - 12.7mm, 1.0" - 25.4mm, 1.5" - 38.1mm
Details: Industrial Grade, Silicone Free
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Pack Sizes: 50, 500 or 1000
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
