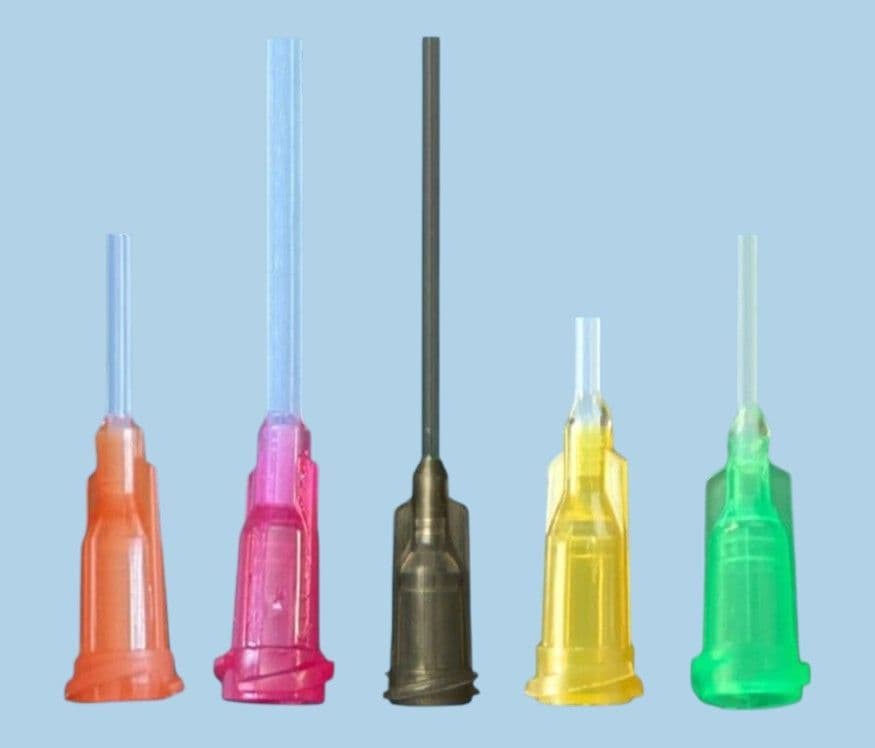

Dispensing tip with long flexible "see-thru" clear tube and threaded luer lock colour coded hub for secure attachment to syringe barrels or dispense valves. Designed for use with Cyanoacrylates and other low viscosity liquids as adhesives will not stick to the tube or clog. The clear tube allows fluid flow to be seen. A flexible 22 gauge PTFE tip tube length options of 0.25" (6.35mm) to 6.0" (152.4mm).

Threaded polypropylene hub with PTFE tube. Clear 'see-thru' tube below the colour coded luer lock hub allows fluid flow to be viewed during dispensing. Supplied in sealed packs of 50. Bulk packs of 1000 are available on request.

Part ID: ADTF22
Materials: Polypropylene/ PTFE
Hub Colour: Green
Tube Colour: Translucent Clear
ID: 0.028" - 0.71mm
OD: 0.048" - 1.21mm
Lengths: 0.25" (6.35mm) to 6.00" (152.4mm)
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
