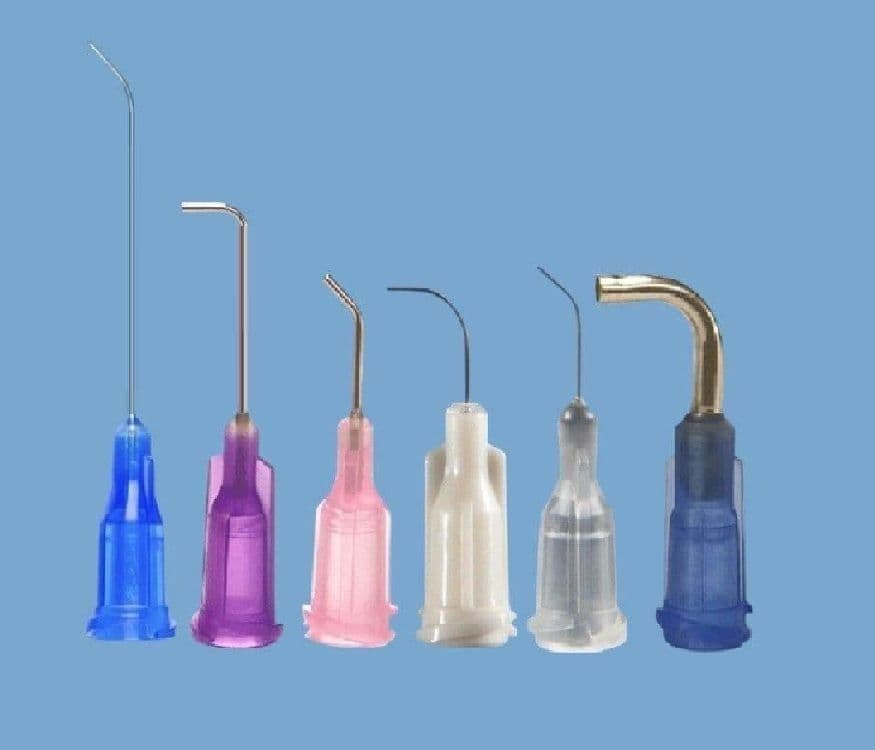

An extensive range of dispense tips for use with syringe barrels, bottles, valves and robots. All tips are industrial grade safe for use to 100 psi air pressures and are certified silicone-free. Luer lock helix secure attachment for twist-on leak free dispensing. Angled tips are recommended for dispensing most adhesives, glues, liquids, pastes and gels. 60° Bend angle tube.
The AD needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Angled tips are suitable for use with most fluids. Prices are for sealed packs of 50, 500 or 1000.

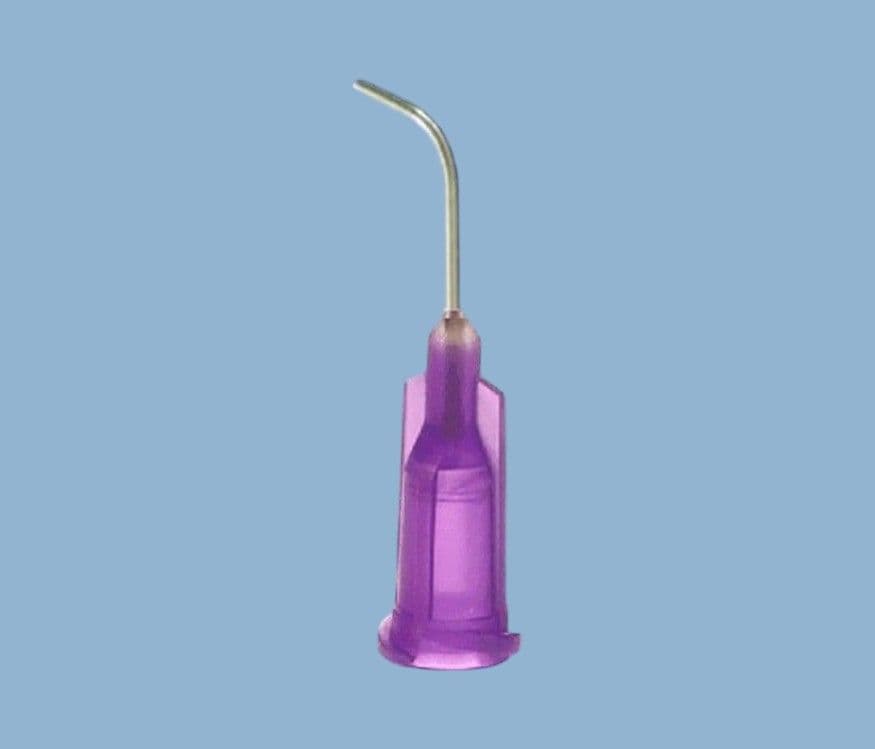

Part ID: AD72105060, AD72110060, AD72115060
Materials: Polypropylene Hub to Stainless Steel Tube
Hub Colour: Purple
Tube Inner Diameter: 0.020" - 0.51 mm
Tube Outer Diameter: 0.032" - 0.81 mm
Tube Lengths: 0.50", 1.0", 1.5"
Connection: Luer Lock
Maximum Pressure: 100 PSI
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Dispensing tips are designed to work with standard syringes and fittings and are fully suitable on most low, medium and high viscosity fluids, adhesives, inks, pastes, gels and lubricants. The ends of these tips will not damage sensitive substrates. Non-sterile products. Common applications include beads of silicone and sealant, dots of solder paste, potting products using epoxy resins, henna inks and gels as well as many other processes.
