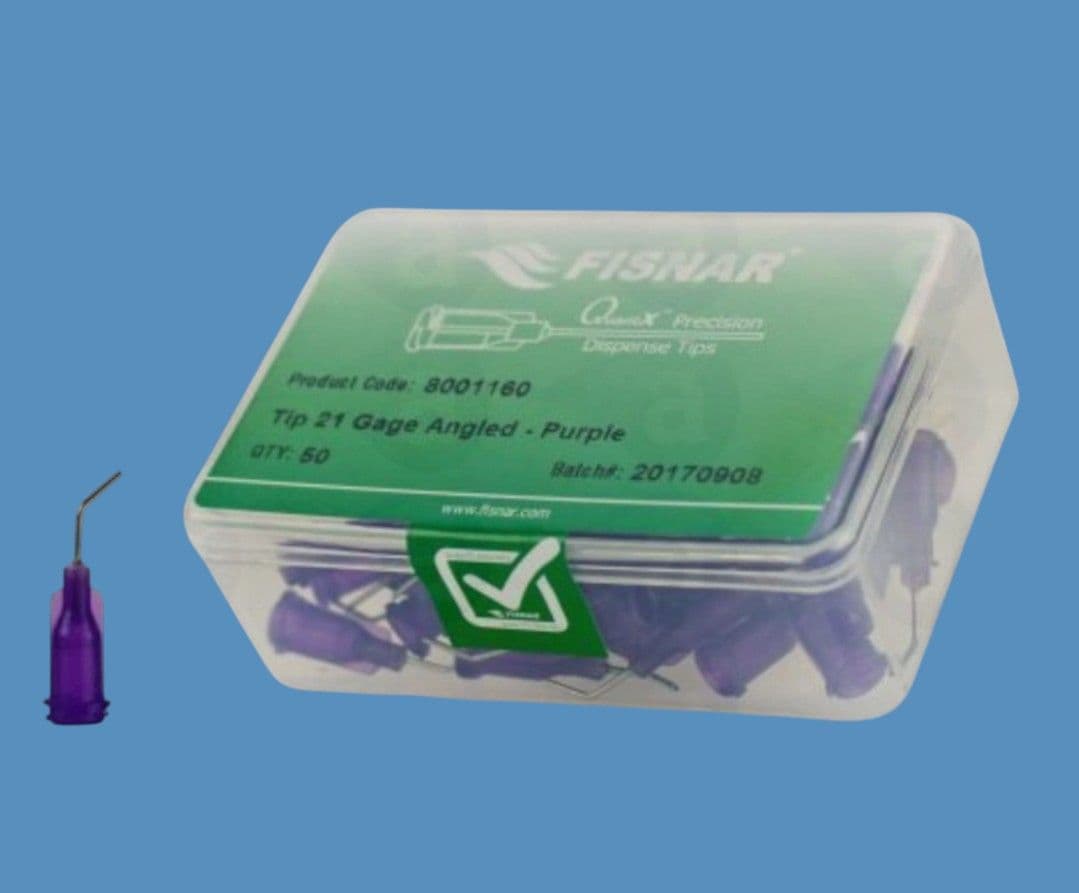

Fisnar Angled Blunt End Dispense Tips allow the operator to dispense in hard-to-reach areas that are inaccessible with straight tips. Angled tips come in both 45 and 90 versions with a wide selection of sizes. Construction - stainless steel angled cannula epoxy sealed to a double helix Luer lock polypropylene hub. Polished burr-free finish for smooth fluid dispensing.
An extensive range of dispense tips for use with syringe barrels, bottles, valves and robots. All tips are industrial grade safe for use to 100 psi air pressures and are certified silicone-free. Luer lock helix secure attachment for twist-on leak free dispensing. Angled tips are recommended for dispensing most adhesives, glues, liquids, pastes and gels. 21 gauge angled tip 0.5" (12.5mm) shaft length with 45° bend. ID 0.020". Purple colour hub.
Siilicone free and industrial grade safe to 100 psi. The TE needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Prices are for sealed packs of 50, 500 or 1000. Angled tips are suitable for use with most fluids.
Part ID: 8001160
Materials: Polypro hub to stainless steel tube
Colour: Purple
Inner Diameter: 0.020" - 0.51 mm
Outer Diameter: 0.032" - 0.81 mm
Tube Length: 0.50" - 12.70 mm
Connection: Luer Lock
Dispensing tips are designed to work with standard syringes and fittings and are fully suitable on most low, medium and high viscosity fluids, adhesives, inks, pastes, gels and lubricants. The ends of these tips will not damage sensitive substrates. Non-sterile products. Common applications include beads of silicone and sealant, dots of solder paste, potting products using epoxy resins, henna inks and gels as well as many other processes.
