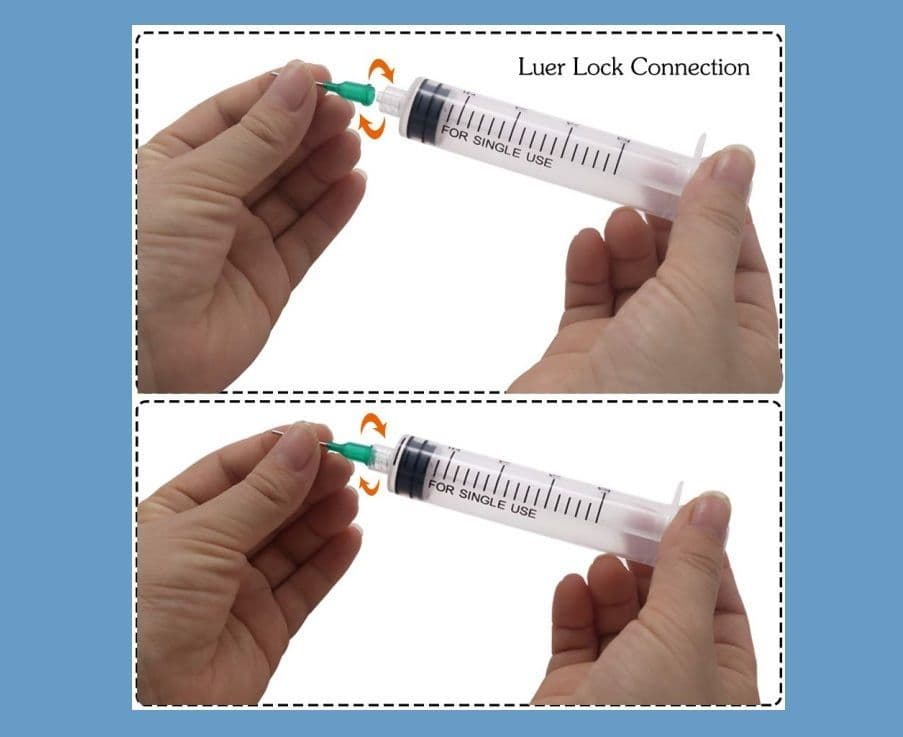

Improve dispensing performance with our precision blunt-end tips. Designed for a wide range of materials such as adhesives, solvents, gels, pastes, and glues, these tips ensure precise and controlled dispensing every time. Easily attach them to syringes, bottles, or fittings for easy integration into any dispensing system. The luer lock hub design guarantees a reliable and leak-free connection, even under high pressure, providing you with a secure and safe process.

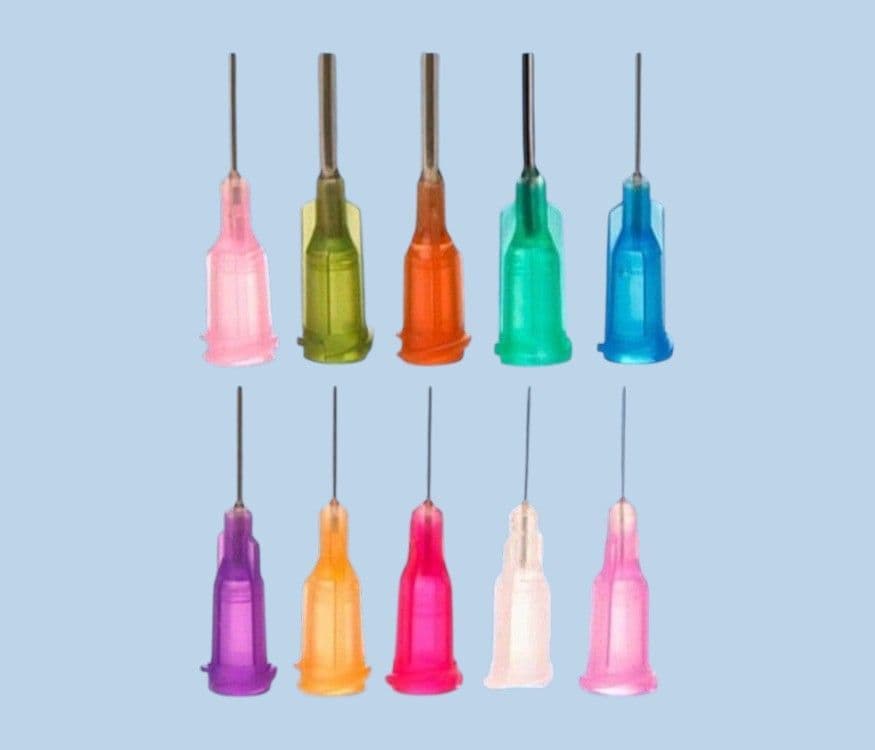

The SE needle series are a value range of dispensing tips made with high quality stainless steel bonded to a luer lock polypropylene colour coded hub. These tips feature a burr-free construction, coupled with an electro-polished tube that ensures uniform material dispensing. SE tips are both silicone and chloride free to prevent contamination. They are suitable for dispensing varying material viscosities, and are made for durability and reliability. SE tip features are offered at a cost effective price point, making them an economical choice for our customers
Our extensive range of blunt-end tips are engineered to meet the highest industrial standards, ensuring maximum safety and reliability for all dispensing processes. SE tips are capable of withstanding air pressures of up to 100 psi, making them suitable for a range of applications. Available in standard packs of 50 or bulk packs of 500 or 1000 for convenience. These versatile tips are compatible with all types of syringe barrels and dispense bottles, including luer lock (twist-on) and luer slip (push-on) varieties, allowing for easy integration into both pneumatic and manual dispensing systems.
Select from a range of gauge diameter sizes and tube lengths.
Specification
Part ID: SE421050PK or SE421100PK
Material: Polypropylene Hub, Stainless Steel Tube
Hub Colour: Purple
Tube Inner Diameter: 0.020" - 0.51mm
Tube Outer Diameter: 0.032" - 0.81mm
Tube Length: 0.50" - 12.7mm or 1.0" - 25.4mm
Maximum Pressure: 100 PSI
Connection: Luer Lock
Commodity Code: 84799070
Brand: Techcon
Origin: USA
Pack Sizes: 50, 500 or 1000 Pieces
- If working with Cyanoacrylate adhesives, we recommend using our PTFE flexible, PTFE Lined, or Polypropylene flexible tips for better results without rapid clogging.
- If dispensing much higher viscosity pastes, sealants, silicones, mastics, solder pastes, and compounds, we recommend our Smooth Flow Tapered tips to reduce back pressure and improve material flow.
- For aggressive solvents or chemical dispensing, use our aluminium hub metal or precision all-metal tips that will not allow solvents to degrade them.
