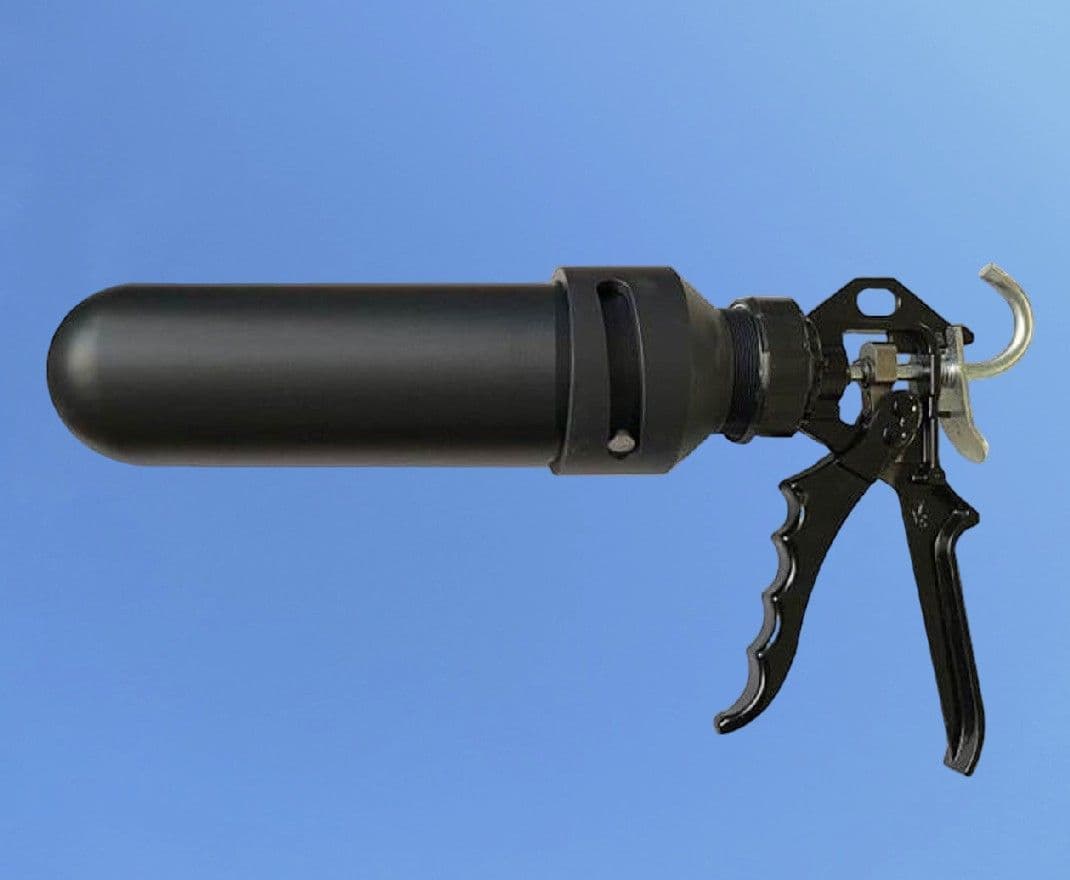

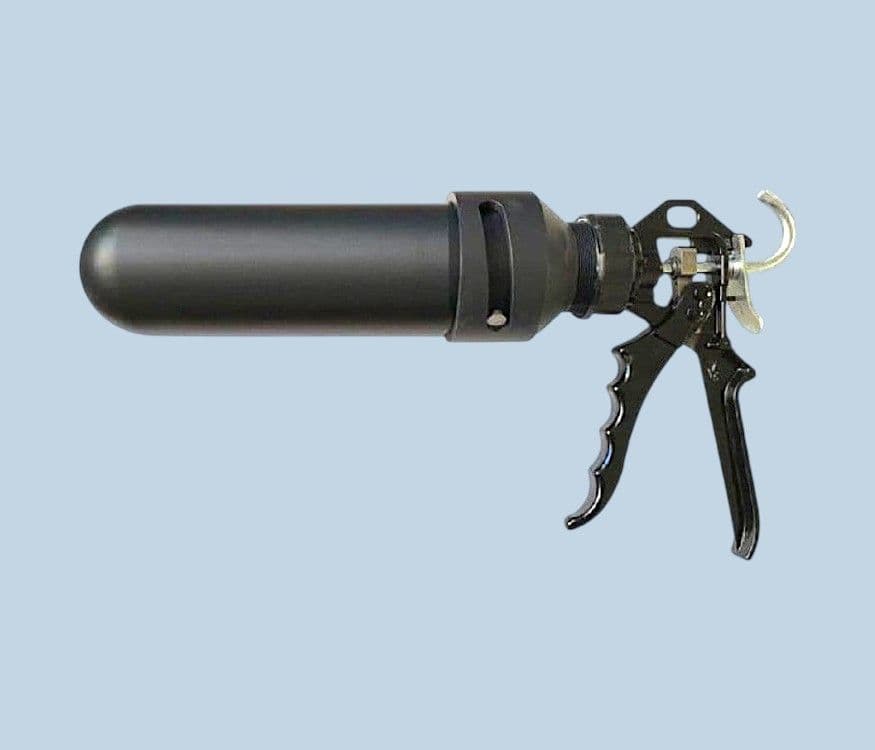

A manual metal cartridge dispenser gun with quick attach bayonet retainer, threaded adapter and trigger handle incorporating a quick release rod. Reverse action to reduce pressure build up and reduce drips or material oozing. Hook ring on the top to use with a counter balance and support if required. Use with all 20oz (591cc) cartridges, Semkits and Techkits. Apply controlled beads or potting of most adhesives, fluids, sealants, RTV, grease, gels, long curing epoxies, mastics and potting compounds.

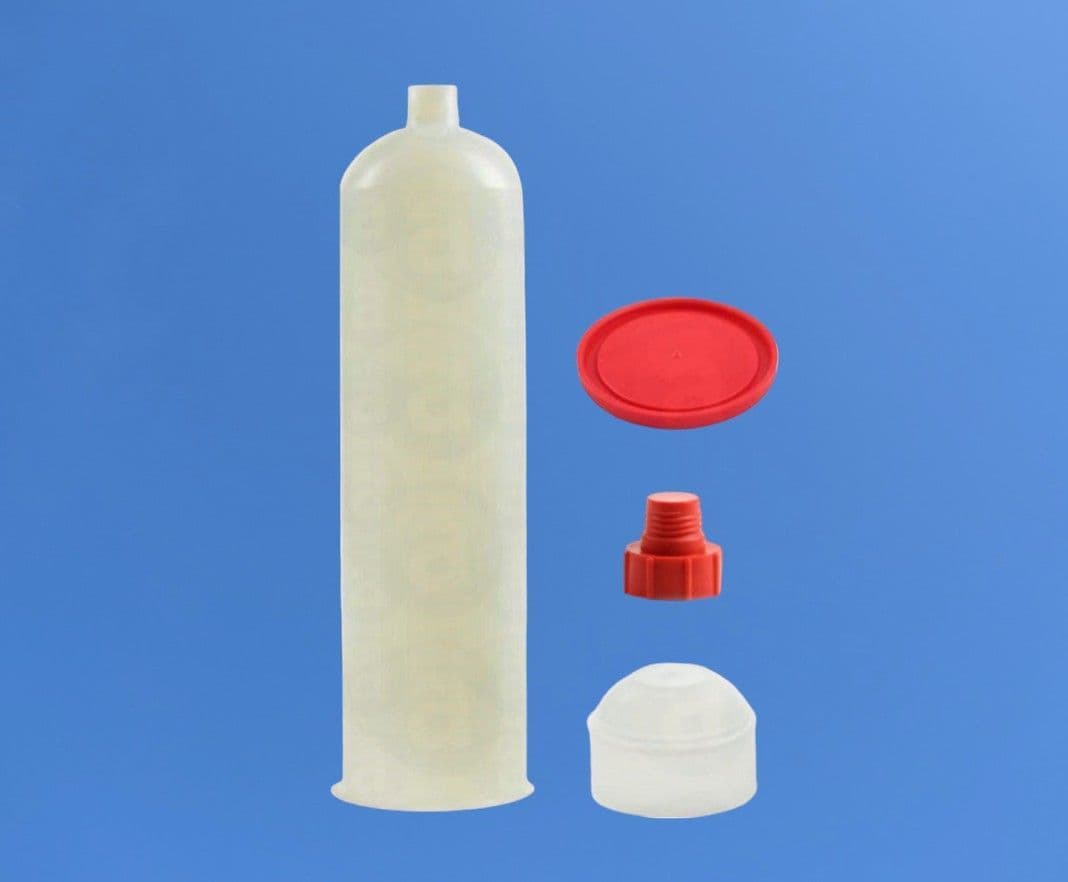

Load in a filled 20oz cartridge. Replace the retainer and twist on tightly to secure the cartridge. Attach a threaded nozzle or use a male luer lock adapter with any standard needle tips. Cartridge gun spares and accessories are also available. Data sheet available on request. Ships direct from stock.
- Trigger Ratio: 18:1
- Maximum Thrust: 2.5kN
- Barrel Length: 249.43mm
- Gun Colour: Black
- Tool Weight: 1.6kg
- Barrel Material: Anodised Aluminium
- Handle Material: Coated Steel
- Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
