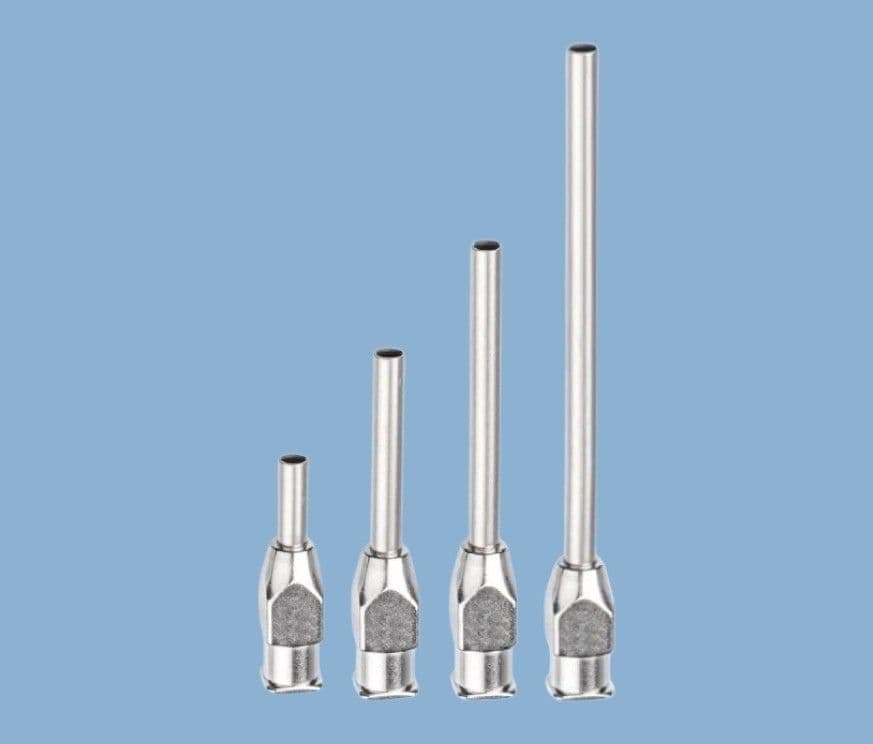

Precision blunt end stainless steel tube to nickel plated brass luer lock hub. Use this tip for dispensing adhesives, solvents, glues, primers, activators and many other fluids. Especially useful for aggressive solvents. A blunt end metal tube length of 0.25" to 4.00".

The TSS needle series consist of a steel luer lock hub with stainless steel precision shaft. This high quality line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, SMT adhesives and solvents. Industrial grade safe for use to 100 psi. Ideal for use on robot dispensing systems as tips are cut high precision for total consistency.

Dispensing tips are designed to work with standard syringes and fittings. These tips are fully compatible with most low, medium and high viscosity fluids, adhesives, inks, pastes, gels and lubricants. Supplied in a sealed pack of 10.

Part ID: TS20SS
Materials: Stainless Steel/ Nickel Plated Brass
Colour: Silver
Inner Diameter: 0.023" - 0.61mm
Outer Diameter: 0.035" - 0.90mm
Tube Lengths: 0.25", 0.50", 1.0", 1.5", 2.0", 3.0" or 4.0"
Connection: Luer Lock
Brand: Adhesive Dispensing Ltd
Commodity Code: 90289090
Origin: GB

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
