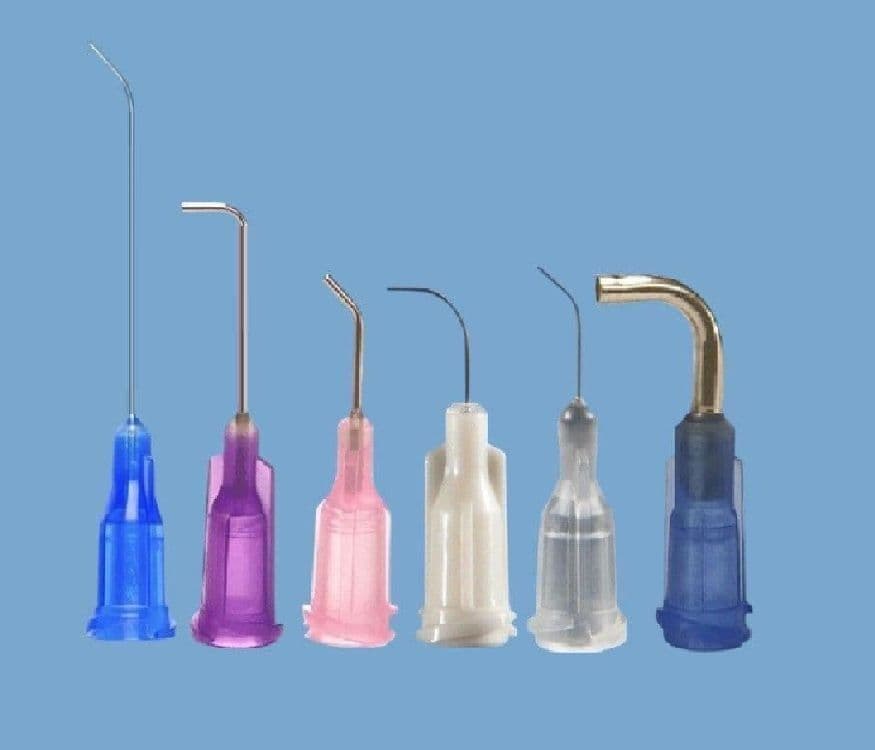

An extensive range of dispense tips for use with syringe barrels, bottles, valves and robots. All tips are industrial grade safe for use to 100 psi air pressures and are certified silicone-free. Luer lock helix secure attachment for twist-on leak free dispensing. Angled tips are recommended for dispensing most adhesives, glues, liquids, pastes and gels.

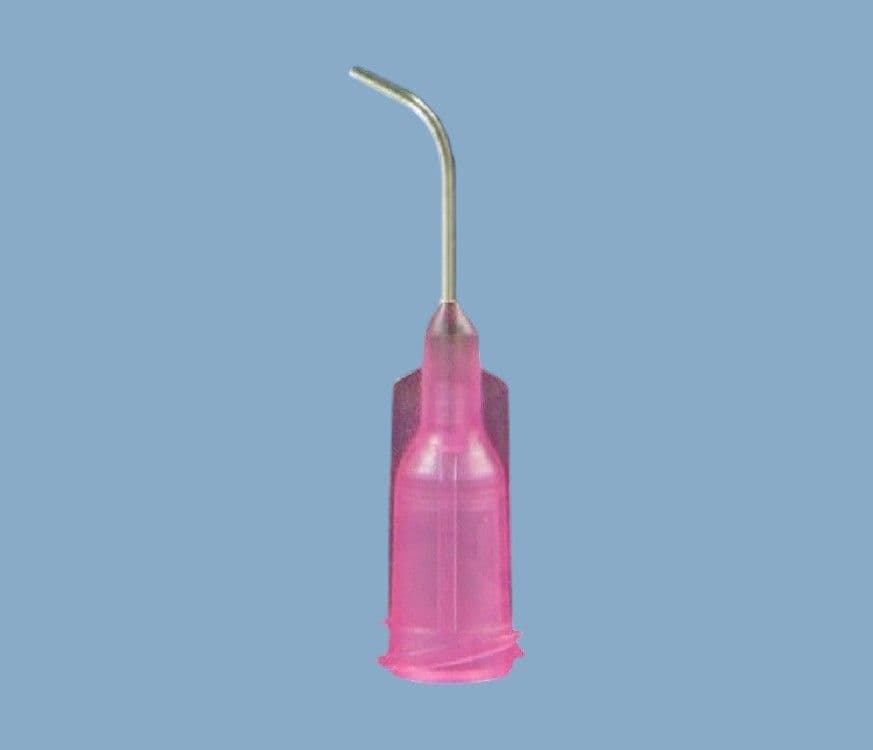

20G angled tip with 60° bend. Pink colour hub. Silicone free and industrial grade safe to 100 psi. The TE needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow.

Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Prices are for sealed packs of 50, 500 or 1000. Angled tips are suitable for use with most fluids.

Part ID: TE720050B60PK (MPN: TE72005060)
Materials: Polypropylene Hub/ Stainless Steel Tube
Colour: Pink
Inner Diameter: 0.024" - 0.61mm
Outer Diameter: 0.036" - 0.91mm
Tube Length: 0.50" - 12.70mm, 1.0" - 25.4mm, 1.5" - 38.1mm
Maximum Pressure: 100 PSI
Connection: Luer Lock
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd

Dispensing tips are designed to work with standard syringes and fittings and are fully suitable on most low, medium and high viscosity fluids, adhesives, inks, pastes, gels and lubricants. The ends of these tips will not damage sensitive substrates. Non-sterile products. Common applications include beads of silicone and sealant, dots of solder paste, potting products using epoxy resins, henna inks and gels as well as many other processes.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
