Dispensing tip with long flexible "see-thru" clear tube and threaded luer lock colour coded hub for secure attachment to syringe barrels or dispense valves. Ideal for use with Cyanoacrylates and other low viscosity liquids as adhesives will not stick to the tube or clog. The clear tube allows fluid flow to be seen.

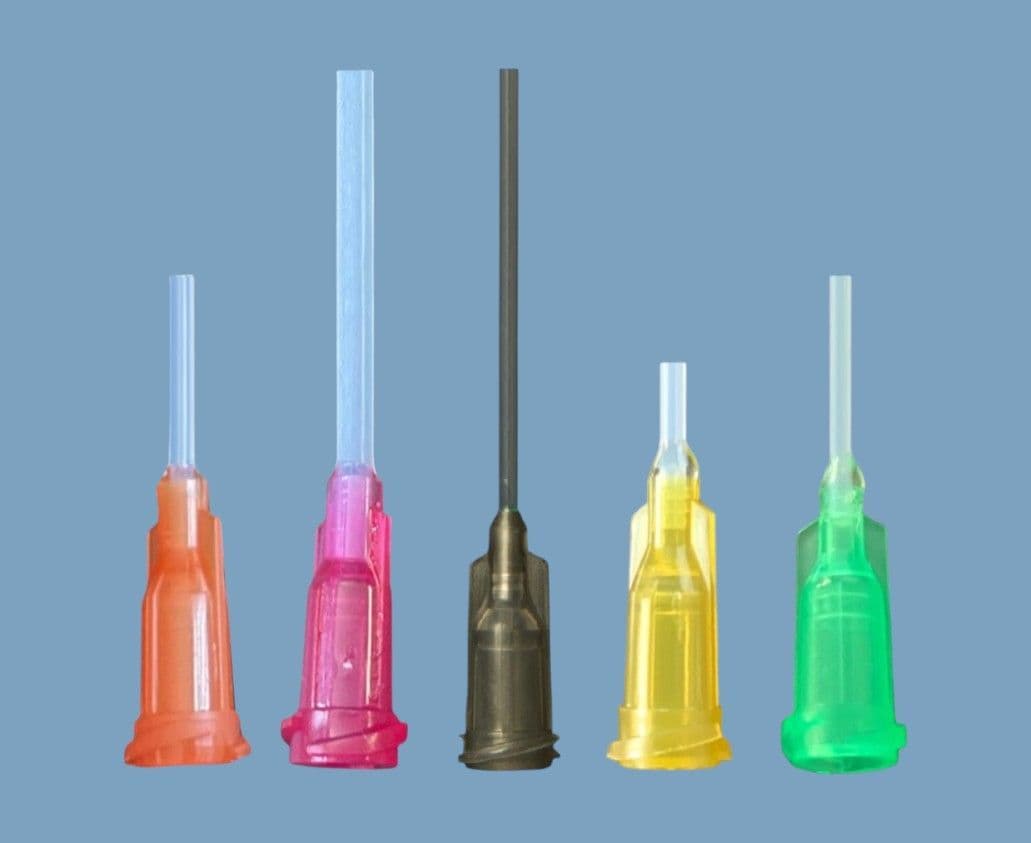

Threaded polypropylene hub with soft flexible PTFE Teflon tube on a range of lengths. Ideal for use with cyanoacrylates, solvents and other low to medium viscosity fluids. Teflon tube will not clog during use.
Supplied in sealed packs of 50. Bulk packs of 1000 are available on request.
Part ID: TF20
Material: PTFE, Polypropylene
Colour: Yellow Hub, Clear Shaft
Inner Diameter: 0.034" - 0.864mm
Outer Diameter: 0.046" - 1.168mm
Tube Length: Select Option. 0.5", 1.0", 1.5", 2.0", 3.0"
Maximum Pressure: 100 PSI
Connection: Luer Lock
Commodity Code: 39269097
Teflon tips are designed to work with all luer lock and luer slip syringe barrels and fittings. They are fully compatible with most fluids, adhesives, solvents, primers but particularly useful for low viscosity adhesives such as Cyanoacrylates. All tips are safe for use up to 100 psi pressure. These tips are precision manufactured for industrial use. Tips are certified silicone-free components to ensure they do not contaminate any fluids or adhesives that are dispensed from them.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
