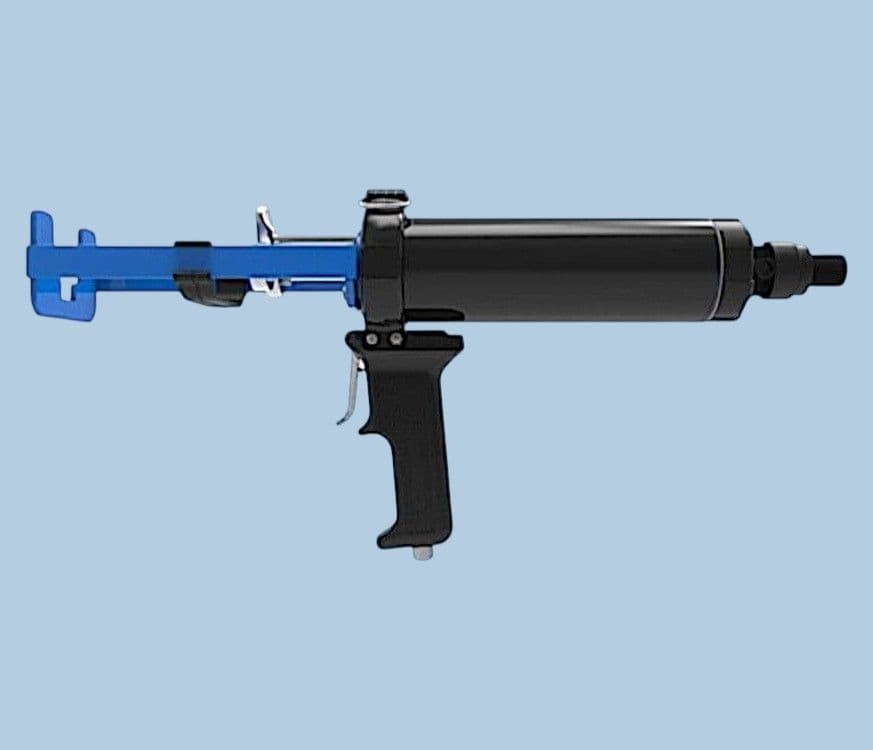

200ml Pneumatic Dual Gun VBA 100 HP

200ml Pneumatic Dual Component Cartridge Gun VBA 100 HP adhesive dispensing Sulzer Mixpac

Product Code: VBA 100 HP

Air powered twin cartridge gun 200ml. For 1:1 ratio cartridges only. Actuator Ø 85mm.

For epoxies, adhesives and other materials that are supplied in 200ml two part, side-by-side 1:1 ratio dual cartridges with the use of a static mixing nozzle.

The lightweight and durable construction of these dual dispenser guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.

Part ID: VBA 100 HP

Materials: Aluminium, Steel
Colour: Black/ Blue
For Cartridge Size: 200ml 1:1 Ratio
Weight: 1.7kg
Frame Length: 172mm
Thrust: Nominal Thrust 2.2 kN @ 100psi
Maximum Pressure: 100 PSI
Air Consumption: 40 Litres/ Minute
For Viscosity's: Low to Medium

Warranty: 1 Year
Commodity HS Code: 90289090
Origin: UK
Approvals: CE, REACH

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £395.00 Exc VAT
