200ml Pneumatic Dual Gun CG200-1

Name: 200ml Pneumatic Dual Gun CG200-1
Brand: Adhesive Dispensing Ltd
Price: 450.00 GBP
Availability: InStock

200ml Pneumatic Dual Component Cartridge Gun CG200-1 adhesive dispensing Sulzer Mixpac

200ml Pneumatic Dual Gun CG200-1

Product Code: CG200-1

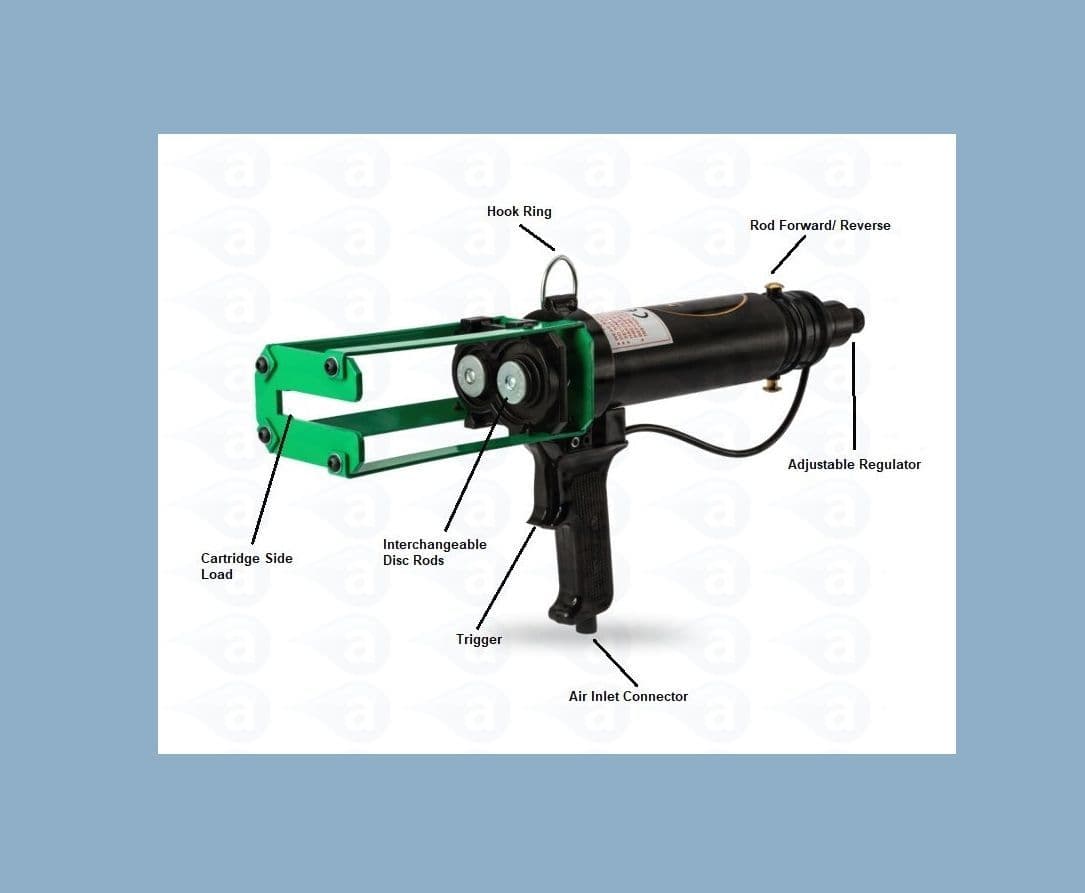

Air powered twin cartridge gun 200ml. For 1:1/ 2:1 ratio cartridges only. Actuator Ø 85mm.

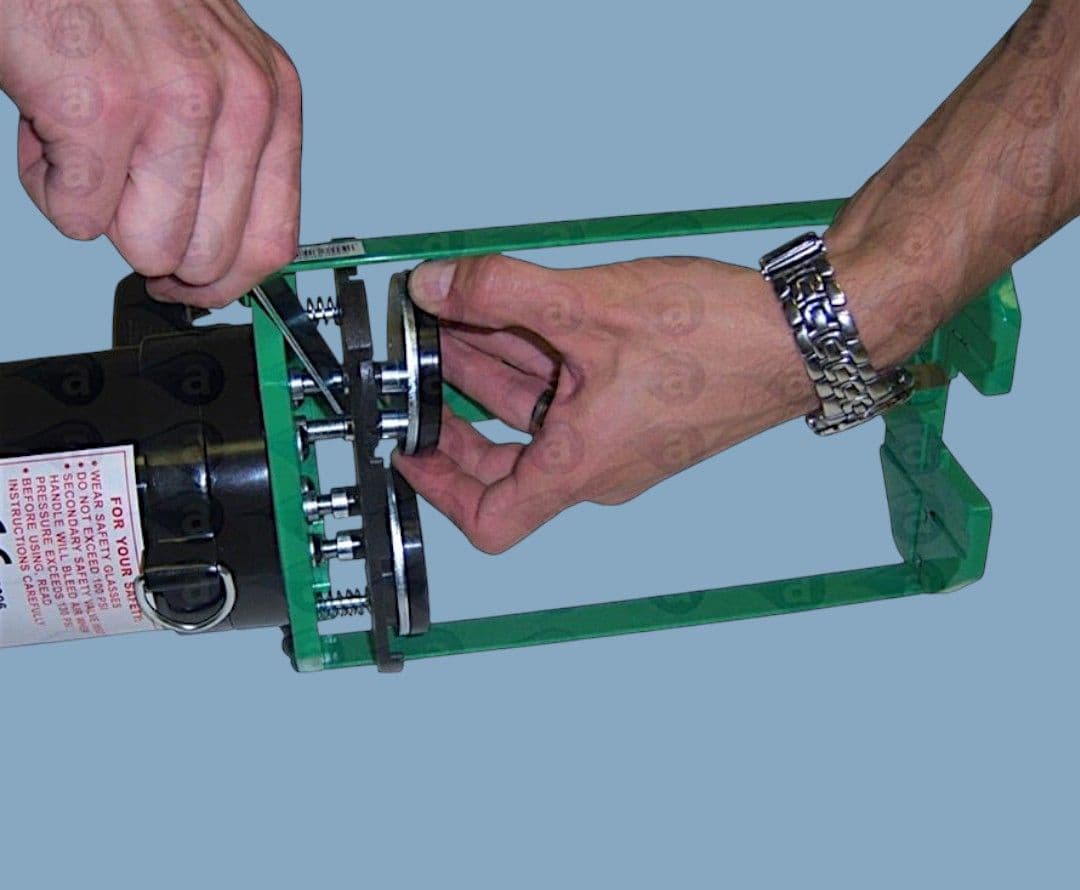

For epoxies, adhesives and other materials that are supplied in 200ml two part, side-by-side 1:1, 2:1 ratio cartridges with the use of a static mixing nozzle. Gun supplied with parts to suit the different cartridge ratios.

The lightweight and durable construction of our dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. Product ships from our UK warehouse.

Part ID: CG200-1
Materials: Nylon, Aluminium, Steel, Zinc
Colour: Black/ Blue

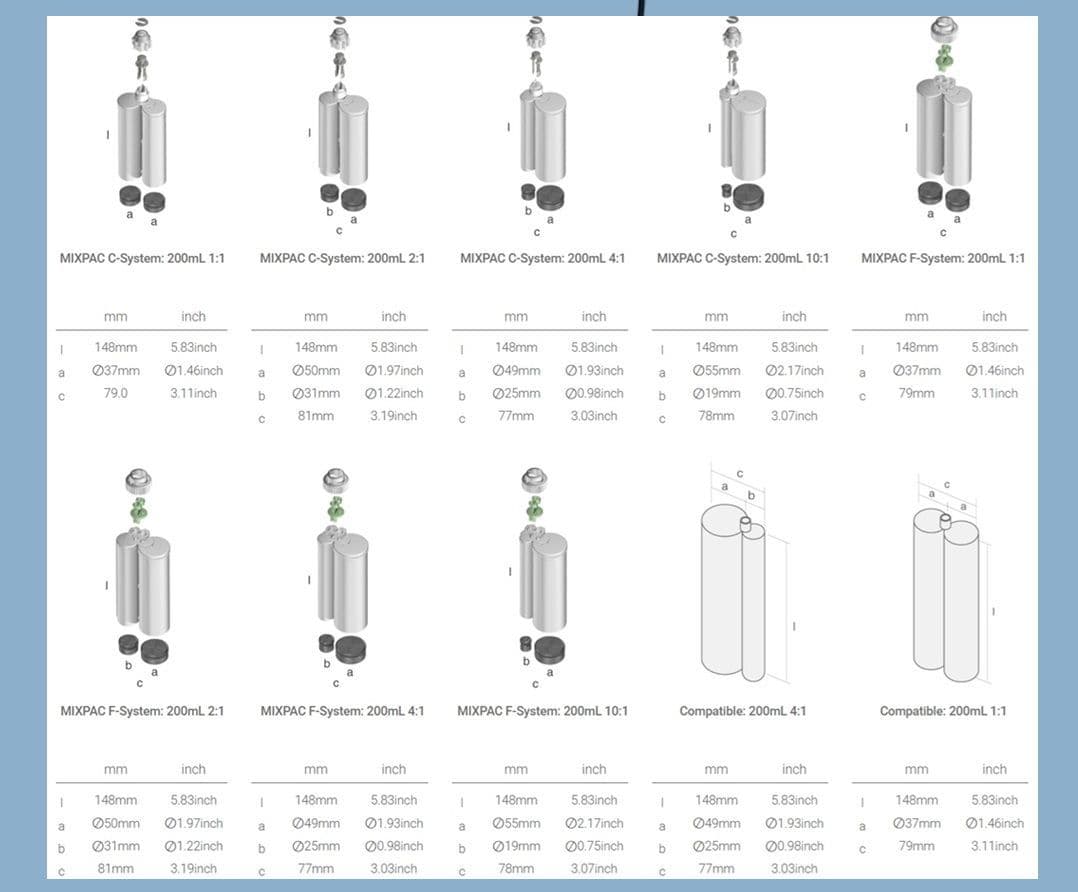

Cartridge Size: 200ml dual 1:1, 2:1 ratio
Weight: 2.26kg
Gun Total Length: 535mm
Frame Length: 159mm
Cylinder Ø 85.0mm
Thrust: Nominal Thrust 490 lbs. (2.2 kN) @ 100psi
Max Pressure: 100 PSI
Warranty: 1 Year
Commodity HS Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £375.00 Exc VAT
