200ml dual cartridge sets 2:1 ratio 422001 pk/50

200ml dual cartridge sets 2:1 422001 Adhesive Dispensing Ltd Sulzer Mixpac
200ml dual cartridge sets 2:1 422001 Adhesive Dispensing Ltd Sulzer Mixpac
200ml dual cartridge sets 2:1 ratio 422001 pk/50
Product Code: 422001

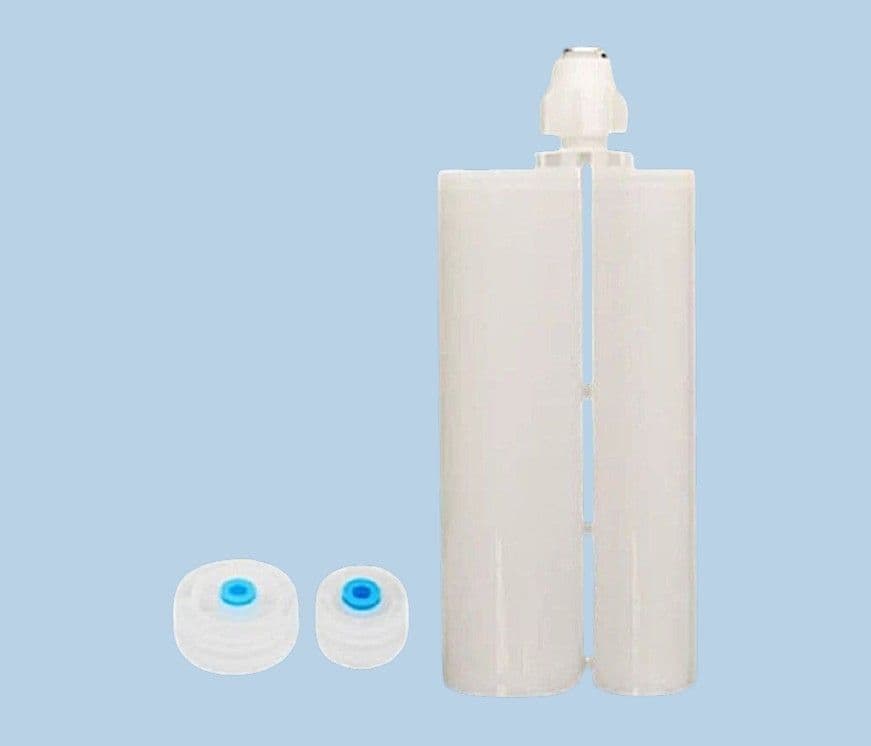

200ml, 2:1, PP natural, self-venting lip seal pistons, assembled nose plug, retaining nut 13mm
Cartridge Sets for Two-Component Adhesives

The dual system is available in 50ml, 200ml and 400ml sizes. All 3 systems - 50ml, 200ml and 400ml, are available in 1:1, 2:1, 4:1 and 10:1 mix ratios and take a variety of mixer nozzles. Both components are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place.

The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. The cartridge can be easily closed and stored for further use, without the material curing. Packs include the cartridge, wiper pistons and cap seals. Compatible with industry standard guns.

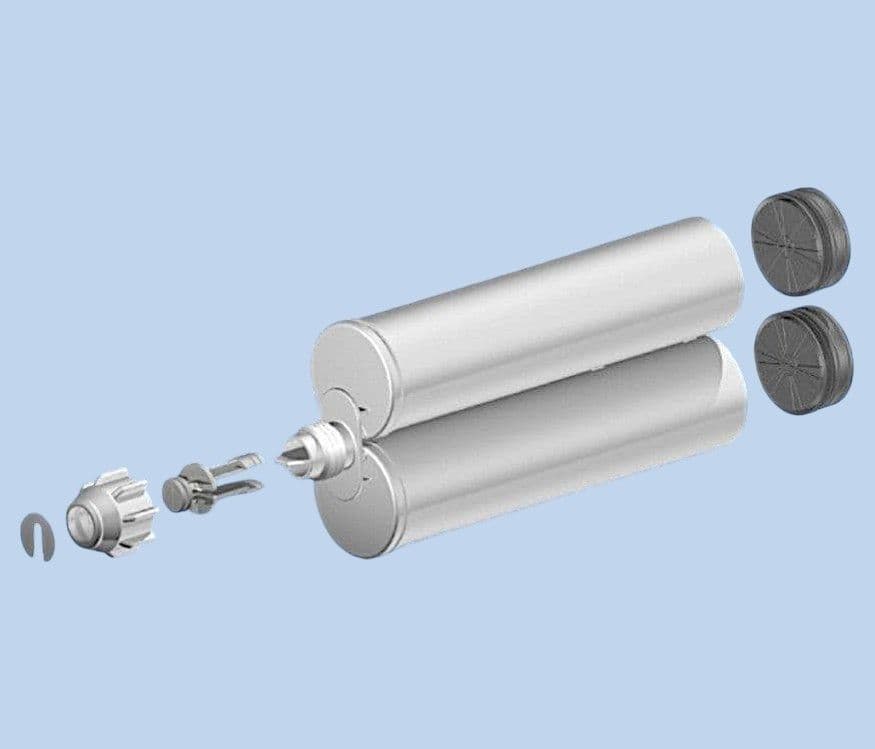

Dual cartridges are supplied in packs of 50 and include tip cap seal and threaded collar as well as 100 of the correct sized pistons.
Part ID: 422001 (MPN # 112699) (Article No: AC 200-02-10-01)
Material: Polypropylene
Colour: Natural Cartridge/ White Piston/ White Cap
Size: 200ml
Mix Ratio: 2 :1 (By Volume)
Maximum Pressure: 100 PSI
Outlet: 16.7mm Diam. Bell Mouth Nozzle Attachment
Retaining Nut: 13mm Diameter
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Asia
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Price: £160.00   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: 422001Lead Time: Ships 24 Hours - Stock ItemSize: 200ml
