200ml dual cartridge sets 1:1 ratio 422026 pk/50

422026 Dual Cartridge 200ml 1:1 Ratio Adhesive Dispensing Sulzer Mixpac 112158 AC 200-01-10-01
422026 Dual Cartridge 200ml 1:1 Ratio Adhesive Dispensing Sulzer Mixpac 112158 AC 200-01-10-01
200ml dual cartridge sets 1:1 ratio 422026 pk/50
Product Code: 422026

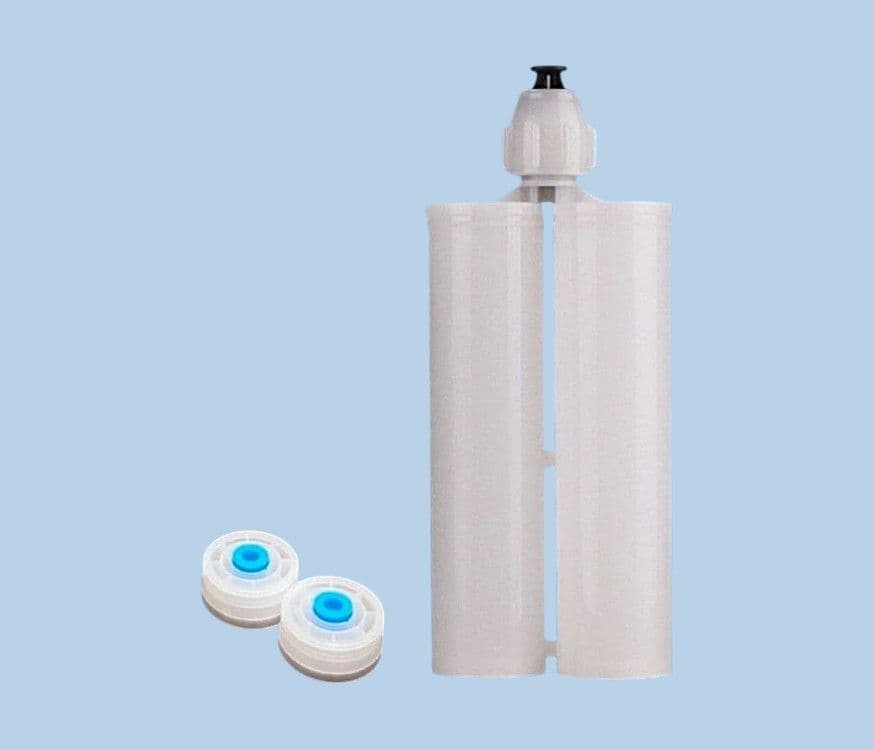

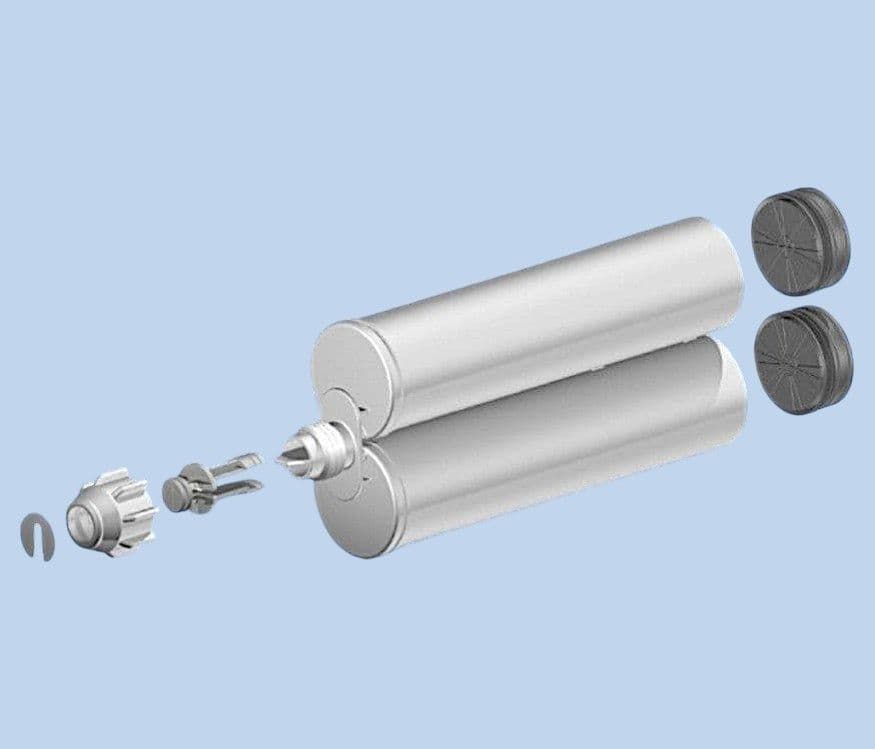

200ml, 1:1, PP natural, self-venting lip seal pistons, assembled nose plug, retaining nut 13mm
Cartridge Sets for Two-Component Adhesives

The dual system in 200ml 1:1 mix ratio to take a variety of mixer nozzles. Both components are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place.

The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. The cartridge can be easily closed and stored for further use, without the material curing. Packs include the cartridge, wiper pistons and cap seals. Compatible with industry standard guns.

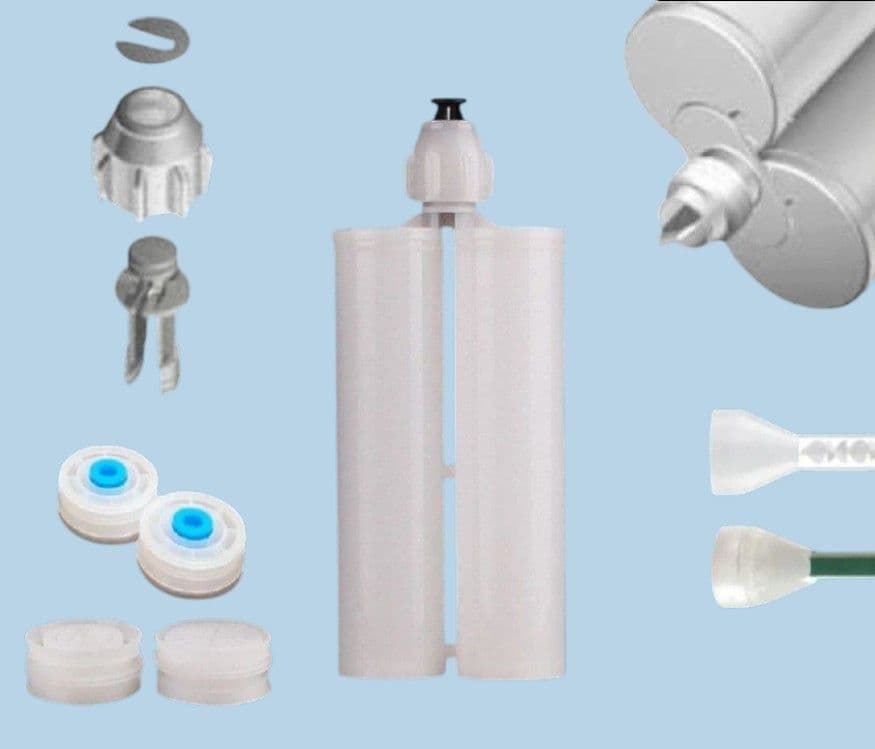

Dual cartridges are supplied in packs of 50 and include tip cap seal and threaded collar as well as 100 of the correct sized pistons.
Part ID: 422026
Material: Polypropylene
Colour: White Cartridge/ White Piston/ White Cap
Size: 200ml (100ml + 100ml)
Mix Ratio: 1:1 (by Volume)
Maximum Pressure: 100 PSI
Outlet: Bell Mouth Nozzle Attachment
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Origin: GB
Pack Size: 50 Sets
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Price: £120.00   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: 422026Lead Time: Ships In 24 Hours - Stock ItemPack Size: 50
