2000ML‑1215 - Multi‑Operator Liquid & Adhesive Dispensing System (Up to 2 Litres)

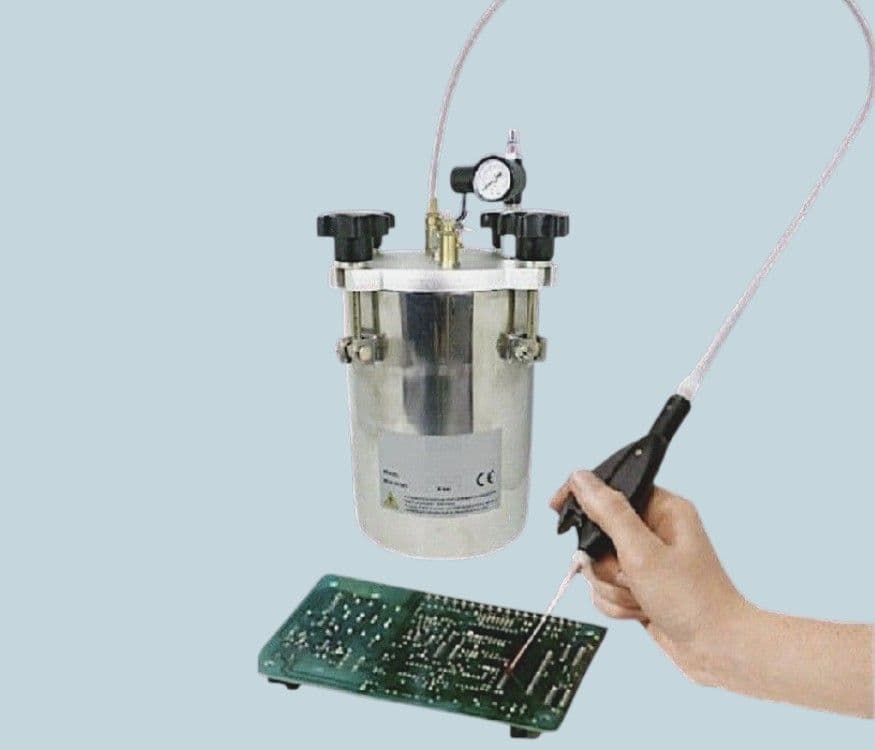

The 2000ML‑1215 dispensing system is a fully contained, high‑capacity solution designed for applying thin and medium‑viscosity adhesives and liquids directly from bottles, cans, liners or tubs up to 2 litres. Operators simply drop the container into the pressure pot - no pouring, no fumes, minimal clean‑up. The sealed tank design prevents exposure to strong odours and eliminates contamination risks.

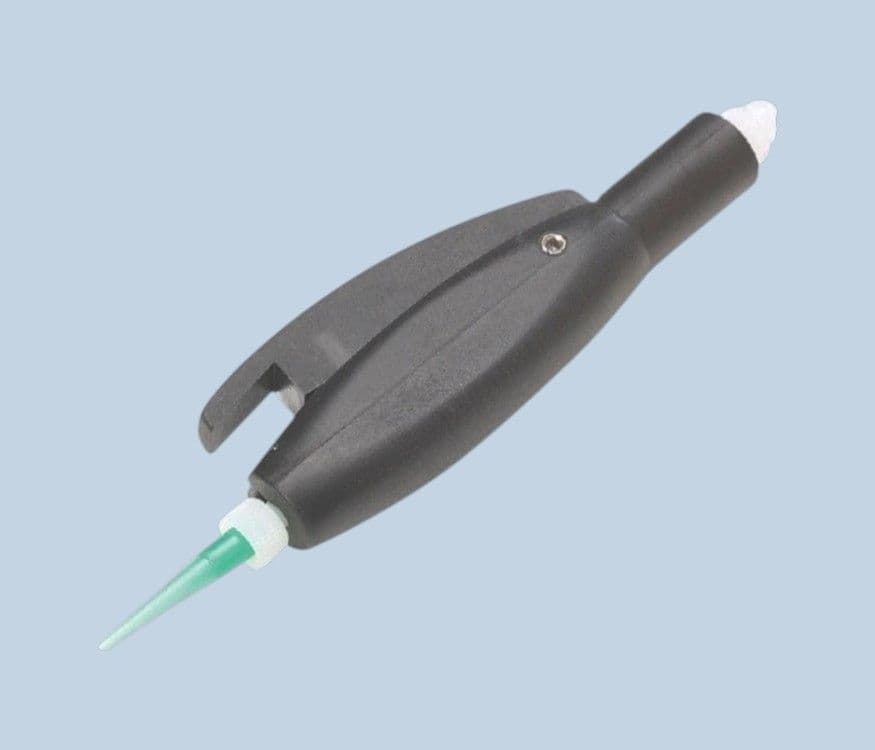

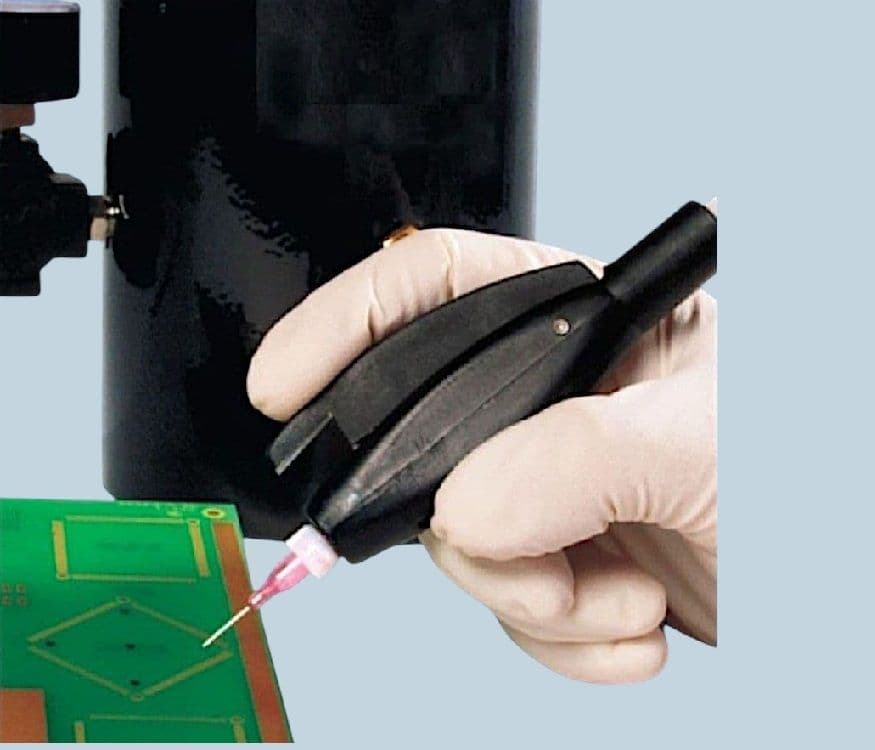

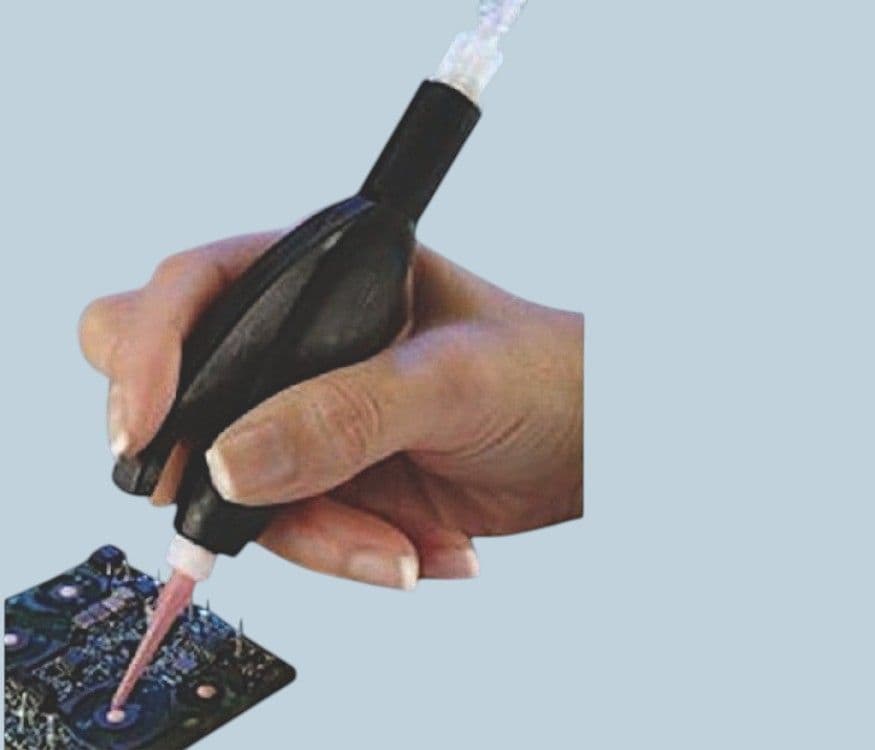

This system is available in single‑user, dual‑user, three‑user or four‑user configurations. A single pressure pot feeds all operators through a precision liquid manifold, allowing each user to work independently with consistent flow. Each operator uses a handheld pinch‑tube valve for clean, controlled deposits with no dripping.
Deposit size is controlled through needle tip size and tank pressure, adjustable via a 0–60 psi regulator. Material is fed under low pressure through flexible tubing, ensuring smooth, repeatable output for adhesives, UV cure materials, primers, inks, solvents and other low‑ to medium‑viscosity fluids.
For cyanoacrylates, the system includes Teflon‑lined tips to prevent clogging. Additional tip assortments are supplied for UV cure adhesives, primers, inks and solvents. A starter stock of tips, caps and fluid lines is included. Only a 50–60 psi filtered air supply is required. Moisture‑filtered air is recommended for reactive adhesives (5‑micron filters available as TSD800‑6).
Key Features
-
Fully contained dispensing system – no pouring, no fumes
-
Accepts up to 2‑litre bottles, cans, liners or tubs
-
Configurable for 1, 2, 3 or 4 operators
-
Single pressure pot feeding multiple operators via liquid manifold
-
Handheld pinch‑tube valves for clean, drip‑free deposits
-
Adjustable 0–60 psi tank pressure
-
Deposit control via tip size and tank pressure
-
Ideal for thin and medium‑viscosity liquids (1–8,000 CPS)
-
Includes Teflon‑lined tips for CA adhesives
-
Additional tip assortment for UV cure, primers, inks and solvents
-
Starter kit of tips, caps and fluid lines included
-
Requires only a clean compressed air supply (50–60 psi)
-
Recommended moisture filtration for reactive adhesives
Technical Specifications
-
Part ID: 2000ML‑1215
-
Tank Capacity: Up to 2 litres
-
Time Range: n/a (manual control)
-
Cycle Rate: n/a (manual control)
-
Minimum Shot Size: n/a (manual control)
-
Viscosity Range: 1–8,000 CPS
-
Warranty: 1 year
-
Commodity Code: 90289090
Applications - Ideal for dispensing:
Suitable for:
-
Electronics assembly
-
Medical device manufacturing
-
Automotive & aerospace production
-
General industrial bonding & sealing
-
Multi‑operator production lines
System Includes
-
2‑litre pressure pot
-
Liquid manifold system
-
Pinch‑tube valves (quantity based on operator selection)
-
Starter stock of Teflon‑lined tips, assorted tips, caps and fluid lines
-
User guide and setup support
