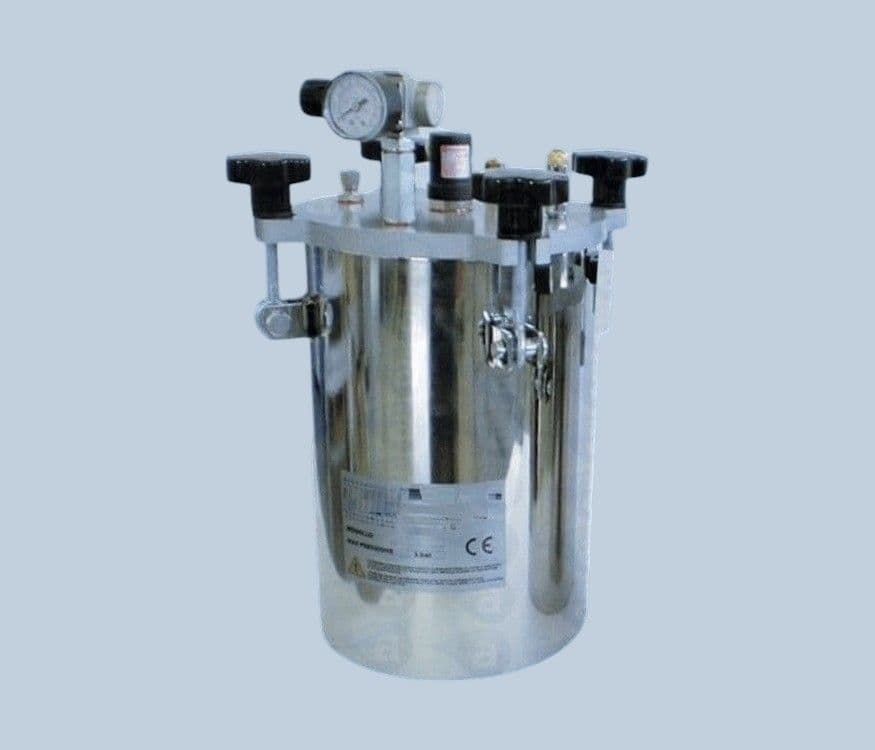

2 Litre Pressure Pot 0-75 psi air regulator TS2220
Product Code: TS2220

Stainless Steel. 5.0" W x 7.3" H. Chamber: 4.75" W x 6.5" H. 4.7kg. Max Pressure: 75 psi.
The TS2220 Pressure Pot (pressure up to 75 psi) is designed to accommodate all solvents and adhesives, as well as cyanoacrylates and UV's. It will also accommodate clear and black fittings and tubing in 1/4, 3/8, and 4mm, with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use.

Airtight seals ensure no leakage or air entrapment problems. 75 psi operating pressure easily handles fluid with viscosity up to 30,000 CPS. Disposable polyethylene dip tube can be quickly changed. The pressure gauge and pressure regulator are located on top for easy reading and access. Includes fluid line connector kit.

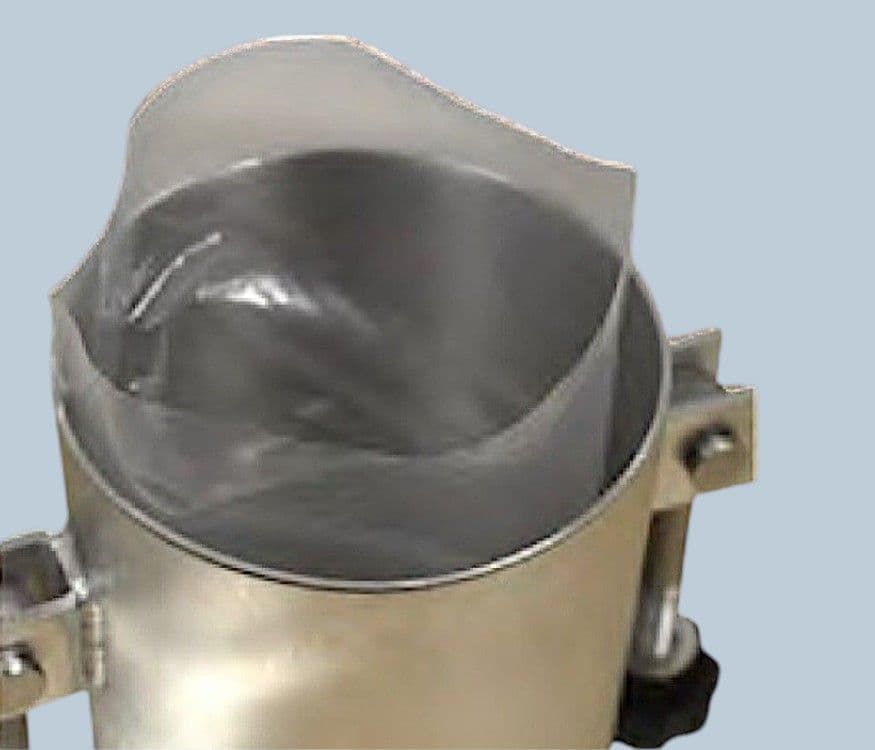

When dispensing adhesives, a container or bottle is best placed inside the tank chamber. Do not pour curable adhesives directly into the pot. Non curing liquids are OK. Main tank body is stainless steel and the lid is aluminium. TS2220 version available as standard pressure pot or TS2220LS version with low level electric sensor fitted.

Material: Stainless Steel/ Aluminium
Colour: Silver
Outer Size: 190 W X 318mm H
Inner Chamber: 123mm I.D. x 190mm H
Weight: 4.5kg
Max Pressure: 75 psi (5 BAR)
Warranty: 1 Year

Commodity Code: 90289090


75 psi - High operating pressure
Fluid Outlet Port - On the lid for easy access
Two Handles - For easy removal of lid
Four knobs to open/close lid - For positive and uniform seal
Pressure Gauge - Located on top for easy reading
Pressure Regulator - Located on top for ease of access
Relief Valve with Pull Ring - To depressurise after usage
Disposable polyethylene - Fluid lines can be changed quickly
Hose Kit - Supplied with tank


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £442.06   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • MPN: TS2220Lead Time: 24-72 HoursCapacity: 5 Litres
