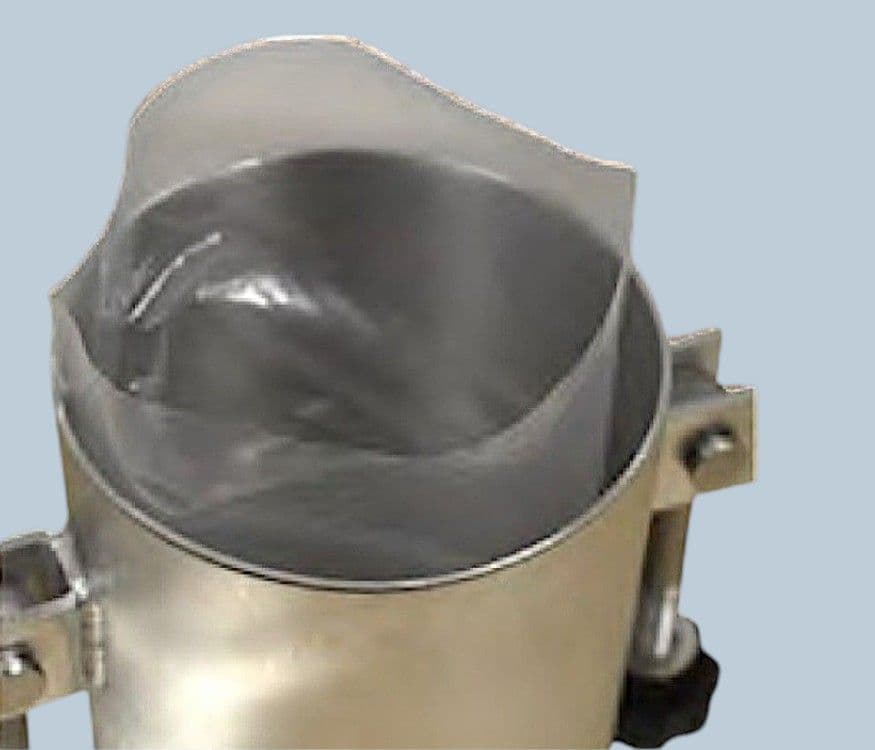

The new mid-sized pressure pot is designed to accommodate low to medium viscosity fluids, including solvents, adhesives and Cyanoacrylate (CA). Equipped with a pressure relief (safety) valve and a stainless steel chamber, TS1254 provides safe, secure dispensing for all applications.
The airtight lid seal ensures that there are no leak points for air or material. Additionally, the pot features an exhaust valve to depressurize after operation. The material feed line is located in the centre of the lid to allow a direct and continuous feed path from the material container to the valve inlet.
The TS1254 is supplied with ¼" (6 mm) Teflon tubing to provide resistance to all types of dispensing fluids. An optional 4 mm tubing kit also is available
Material: Stainless Steel/ Aluminium
Outer Size: 190mm W x 318mm H (7.5" x 12.5")
Inner Chamber: 121mm W x 165mm H (4.75" x 6.5")
Max Pressure: 70 psi (4.8 BAR)
Details: CE Approved
Warranty: 1 Year
Commodity Code: 9028200
