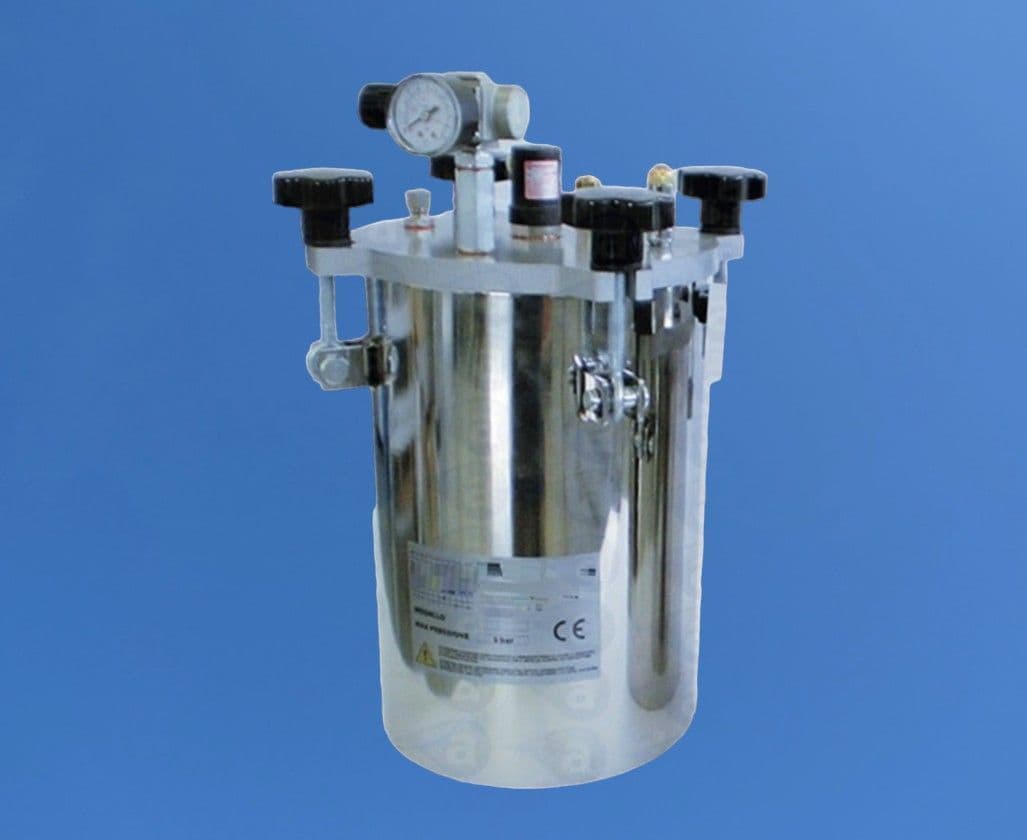

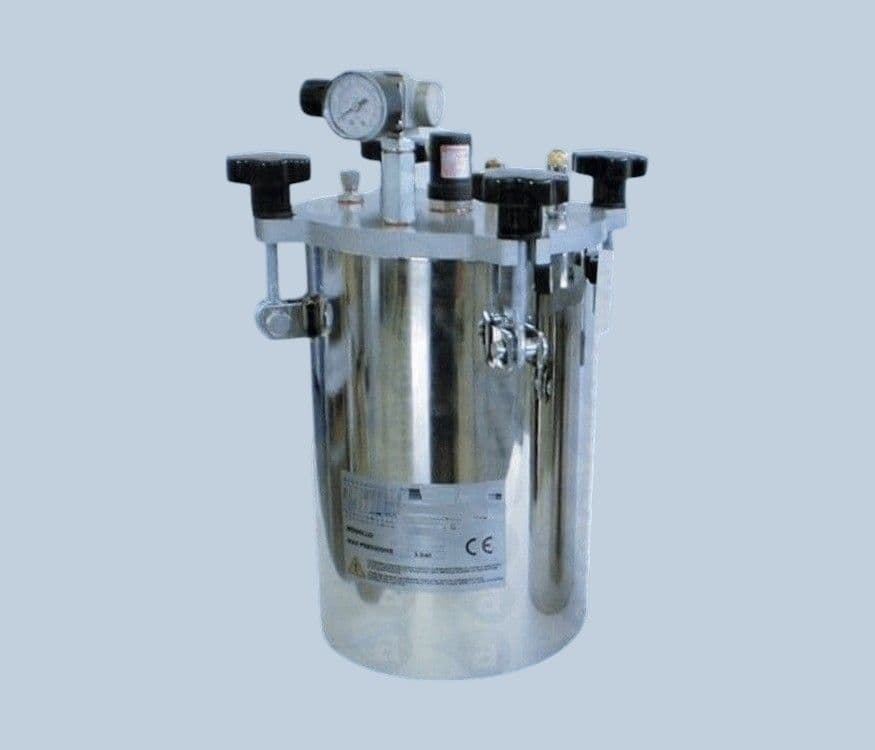

The TS2215 pressure pot (pressure up to 15 psi) is designed to accommodate solvents and adhesives, as well as low viscosity cyanoacrylates and UV's. It will also accommodate clear and black fittings and tubing in 1/4 , 3/8 , and 4 mm, with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use.

Airtight seals ensure no leakage or air entrapment problems. 15 psi operating pressure easily handles fluid with viscosity up to 1,000 CPS. Disposable polyethylene dip tube can be quickly changed. The pressure gauge and pressure regulator are located on top for easy reading and access. Includes fluid line connector kit.

When dispensing adhesives, a container or bottle must be placed inside the tank chamber. Do not pour adhesives directly into the pot. Main tank body is stainless steel and the lid is aluminium. Versions available as standard pressure pot or with low level electric sensor fitted.

Material: Stainless Steel/ Aluminium
Colour: Silver
Outer Size: 5.04" X 7.28" (128 X 185mm)
Inner Chamber: 4.72" I.D. x 6.5" (120mm I.D. x 165mm)
Weight: 4.5kg
Max Pressure: 15 psi (1 BAR)
Warranty: 1 Year
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
