16 Pitch Rotating Feed Path TS5000DMP DMP16R-10 pk/10
Product Code: DMP16R-10

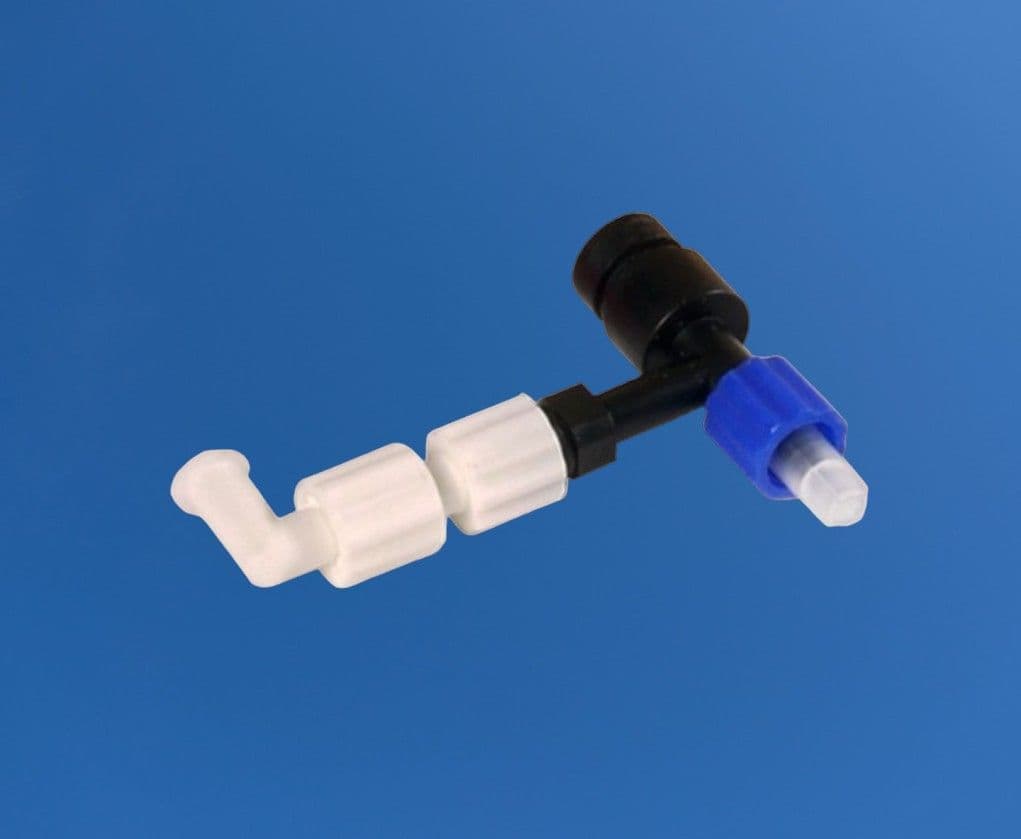

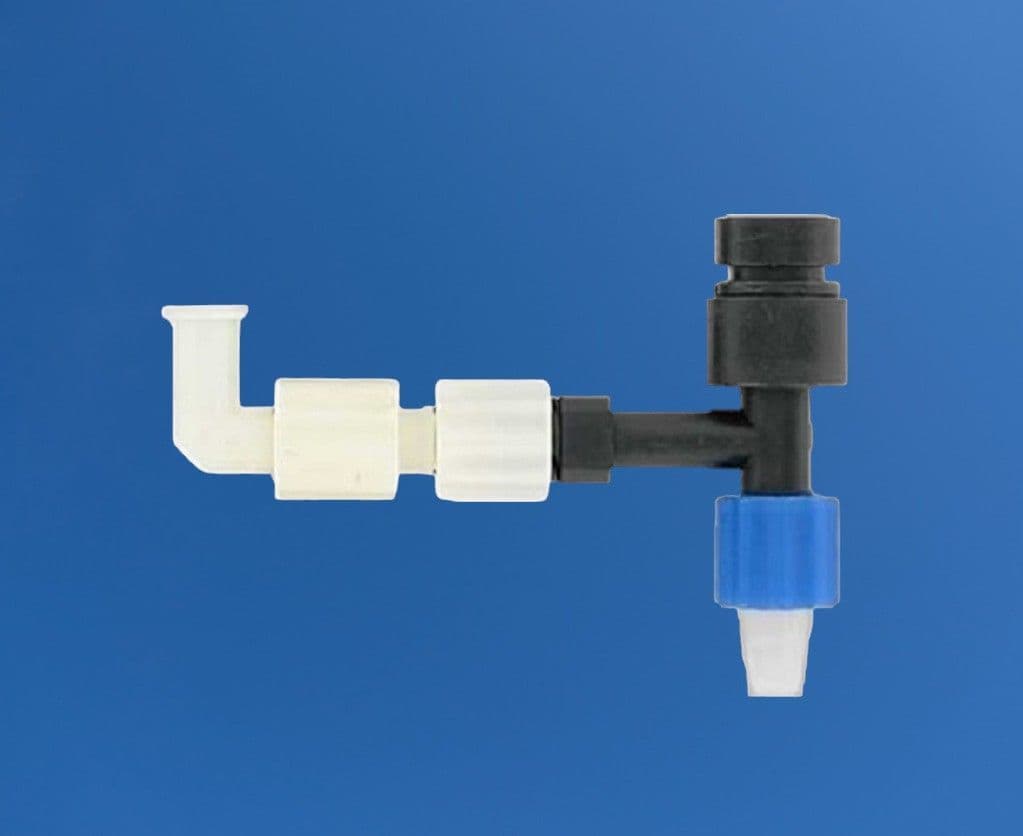

Replacement feed paths 16 pitch with rotating luer collar for TS5000DMP valve. Pack of 10.
 Replacement feed paths for use with TS5000DMP auger valve. Simple rapid changeover for maintenance free dispensing. 16 pitch size. High density Delrin. Fits into valve and allows for direct attachment of syringe barrel to feed material and dispense tip on the output. Supplied pre-assembled in sealed packs of 10 fittings. Version with rotating red luer lock collar.

Part ID: DMP16R-10
Size: 16 Pitch
Material: Delrin
Inlet: Female luer
Outlet: Male luer
Colour: Black/ white/red
Pack Size: 10

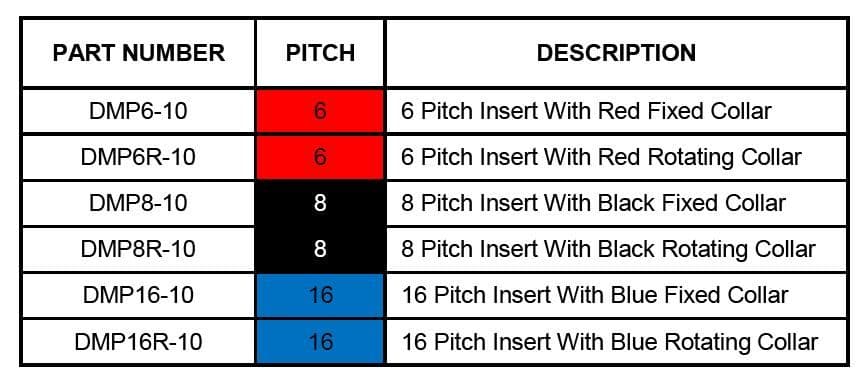

The unique DMP (Disposable Material Path) Valve (TS5000DMP) offers a choice of 3 different feed screw sizes (6, 8 and 16-pitch), all made of Delrin®. The DMP Valve has a hinged doorway that opens easily so the disposable auger can be removed and replaced within seconds, while the line is still in operation, significantly reducing downtime and waste. The choice of left, right or center hinge openings makes the valve suitable for mounting on most automated systems.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £229.84   Exc VAT
  • Product Brand:TSI
  • Lead Time: Usually Ships 72 HoursMPN: DMP16R-10Pack Size: 10
