16 Pitch Feed Path for TS5000DMP DMP16-10 pk/10
Product Code: DMP16-10

Replacement feed paths 16 pitch for TS5000DMP valve. Supplied in a sealed pack of 10.

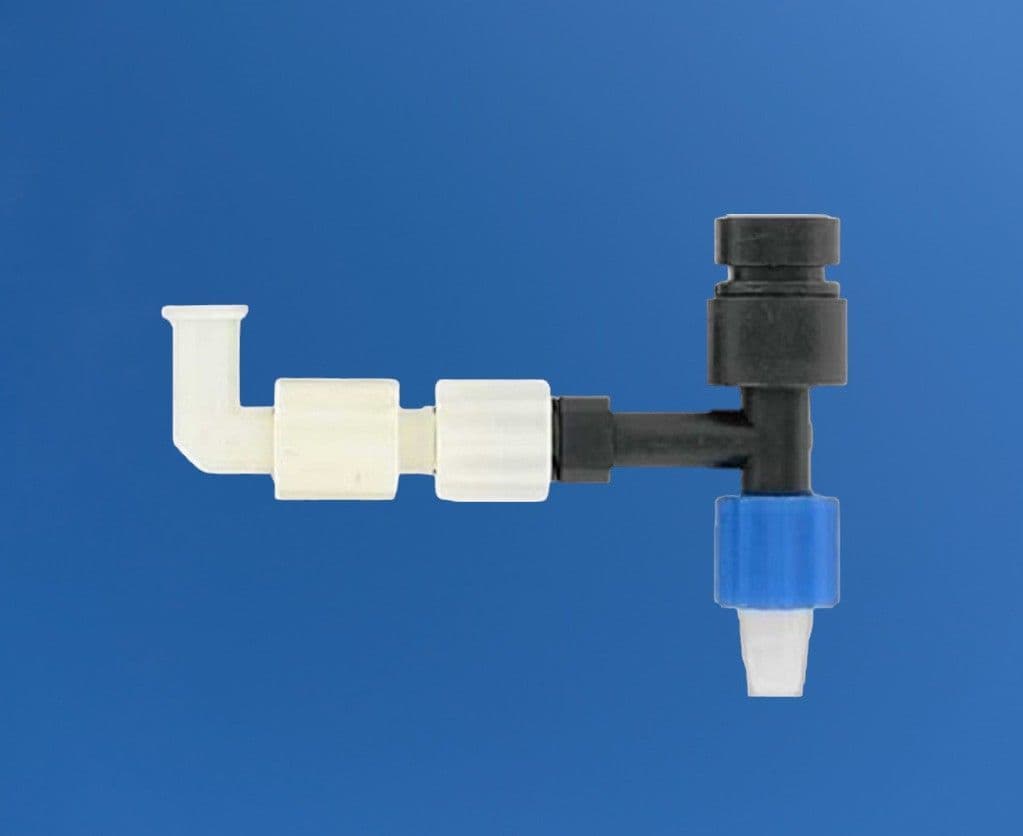

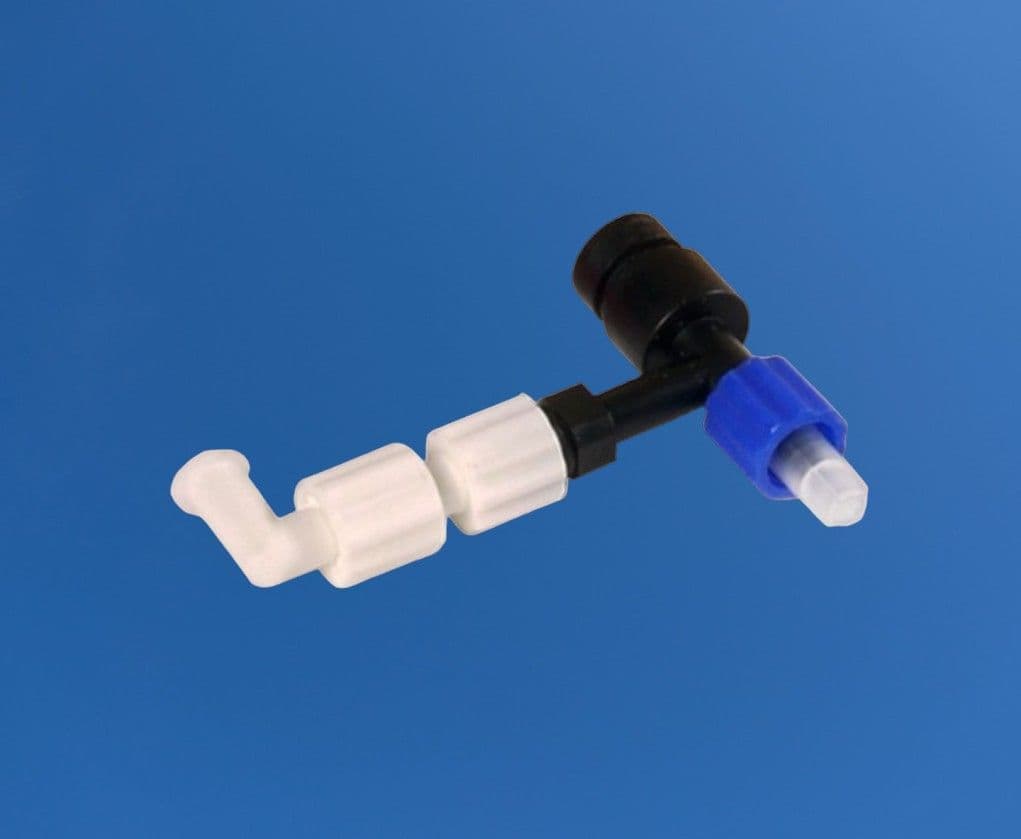

  Replacement feed paths for use with TS5000DMP auger valve. Simple rapid changeover for maintenance free dispensing. 16 pitch size. High density Delrin. Fits into valve and allows for direct attachment of syringe barrel to feed material and dispense tip on the output. Supplied preassembled in sealed box of 10 feedpaths.

The unique DMP (Disposable Material Path) Valve (TS5000DMP) offers a choice of 3 different feed screw sizes (6, 8 and 16-pitch), all made of Delrin®. The DMP Valve has a hinged doorway that opens easily so the disposable auger can be removed and replaced within seconds, while the line is still in operation, significantly reducing downtime and waste. The choice of left, right or centre hinge openings makes the valve suitable for mounting on most automated systems.

Part ID: DMP16-10
Size: 16 Pitch
Material: Delrin
Inlet: Female Luer Lock
Outlet: Male Luer Lock
Colour: Black/ White / Blue
Pack Size: 10
Commodity Code: 39269097
Origin: USA
Brand: TSI

Data Sheet

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Price: £259.00   Exc VAT
  • Product Brand:Techcon
  • Lead Time: 1-2 WeeksPack Size: 10MPN: DMP16-10
