Premium quality dispensing tips for use with syringe barrels, dispense bottles, dispense valves and robots. All tips are industrial grade safe for use to 100 psi air pressures and are certified silicone-free. Luer lock helix secure attachment for twist-on leak free dispensing. Smooth flow tapered tips are recommended for applying viscous pastes, glues, silicone's  and gels.

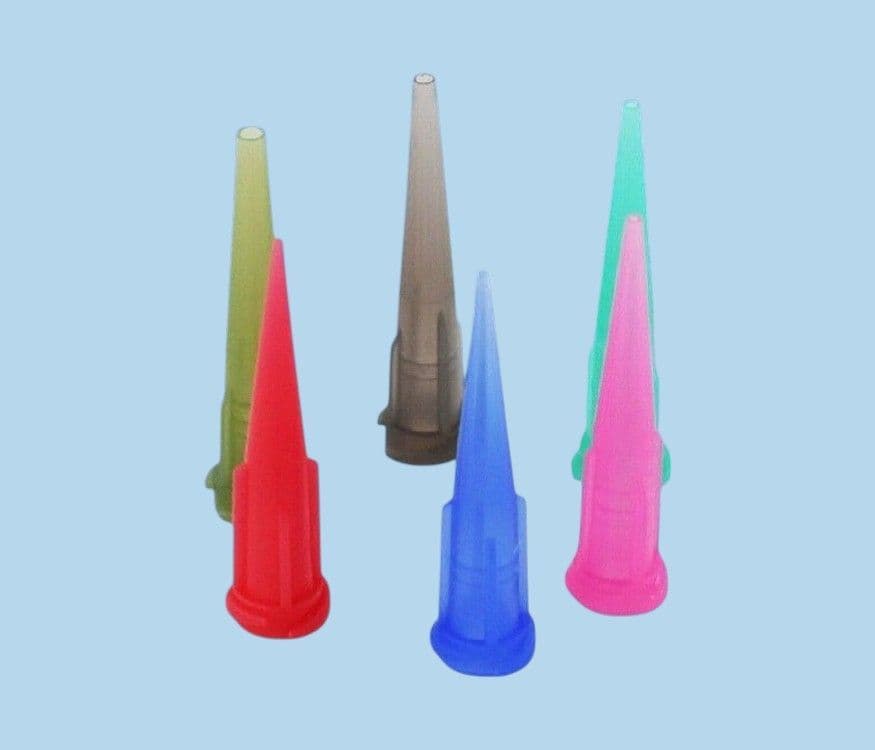

Polyethylene 14 gauge Olive colour tapered tip with an ID size of 0.063" (1.60mm). 1.25" overall length. Smooth flow of all liquid types including epoxies, greases, sealants, and particle filled pastes. Safety locking double helix hub. Supplied in sealed boxes of 50 tips or bulk packs of 1000 tips.

This tip features a smooth flowing taper design that allows for very high viscosity pastes and compounds to be dispensed using lower pressures. Suitable for use with syringe barrels, cartridges (using optional tip adapter) and with all metering valves.

Specifications:
Colour: Olive
ID: 0.063" - 1.60 mm
Length: 1.25" - 31.75 mm
Maximum Pressure: 100 PSI
Connection: Female Luer Lock
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Techcon
Pack Size: 50, 1000

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
