TES Series Precision Stainless Steel Dispensing Tips - Industrial Luer Lock Applicators
Precision dispensing tips available with 0.25", 0.50" or 1.0" long stainless steel tubes. The TES Series offers high‑performance dispensing with exceptional flexibility across a wide range of industrial applications. Stainless steel tubing is cut to precise lengths, ground burr‑free and crimped into an aluminium locking insert before being moulded into double‑helix polypropylene hubs. Hub colours correspond to gauge size for quick identification.
TES tips are available in tube lengths of 0.25" (6.35 mm), 0.50" (12.7 mm) and 1.0" (25.4 mm), and supplied in packs of 50, 500 or 1000. Each tip secures to standard syringe barrels and conforms to the luer lock specification. A slightly tapered internal hub design improves fluid flow, reduces restriction and allows lower operating pressures when dispensing liquids, gels and pastes. Crimped tube bonding makes TES tips ideal for use with solvents, as the tube is mechanically locked rather than glued.
Technical Specifications
Part IDs: TES14025, TES14050, TES14100
Materials: Polypropylene Hub, Stainless Steel Tube

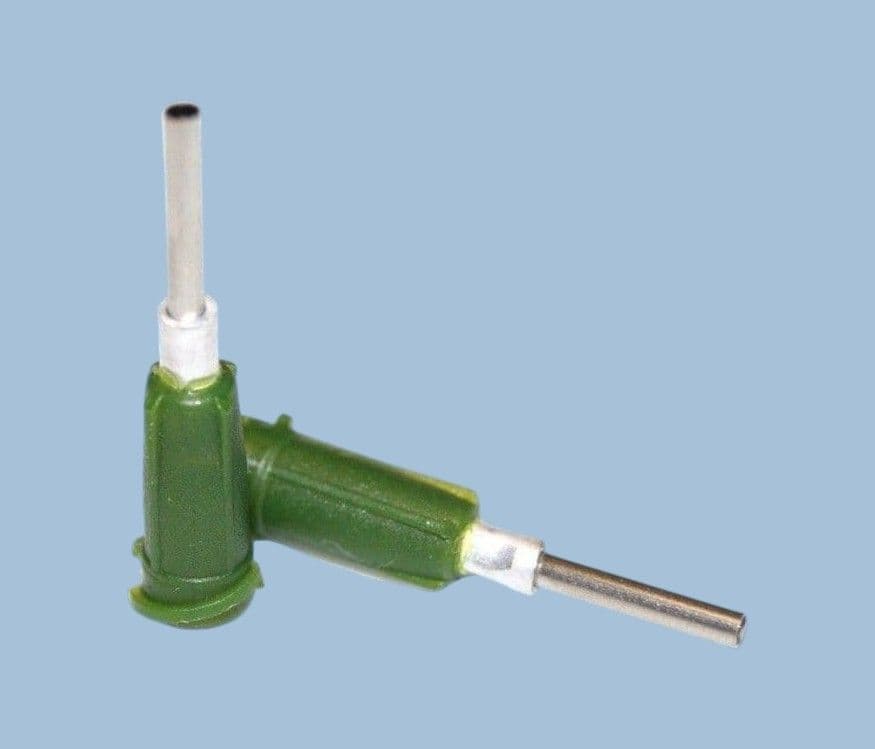

Hub Colour: Olive Green
Inner Diameter: 0.066" (1.69 mm)
Outer Diameter: 0.083" (2.11 mm)
Tube Lengths: 0.25" (TES14025), 0.50" (TES14050), 1.0" (TES14100)
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free, Chloride Free
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Material Compatibility
TES Series dispensing tips are suitable for a wide range of low, medium and high viscosity materials used in industrial assembly, production and repair environments. Compatible materials include:
- Cyanoacrylate adhesives
- Epoxies, resins and two‑part systems
- Solvents and solvent‑based liquids
- Primers and activators
- Silicones, sealants and thick pastes
- Greases, gels and lubricants
- Inks, coatings and thin‑film fluids
High Quality Manufacturing & Fast Lead Times
Adhesive Dispensing Ltd manufacture and supply high‑quality dispensing components built to strict industrial standards. TES tips are produced using precision‑cut stainless steel tubing, aluminium locking inserts and moulded hubs for consistent flow, durability and repeatable performance. All tips are batch‑coded for full traceability.
We maintain high stock levels across the TES Series range to support fast order fulfilment. Our UK warehouse provides rapid dispatch and short lead times, ensuring reliable supply continuity for production lines, assembly operations and maintenance teams.
Frequently Asked Questions (FAQ)
Q: Are TES tips compatible with all syringe barrels?
Yes. TES tips fit all standard luer lock syringe barrels, fittings and dispense bottles.
Q: Are crimped tips suitable for solvent dispensing?
Yes. The mechanical crimp between the tube and hub makes TES tips ideal for solvent‑based materials.
Q: What pressure rating do TES tips support?
TES Series tips are rated for up to 100 PSI, suitable for most pneumatic dispensing systems.
Q: Are these tips sterile?
No. Tips are supplied clean and ready for industrial use but are not sterile.

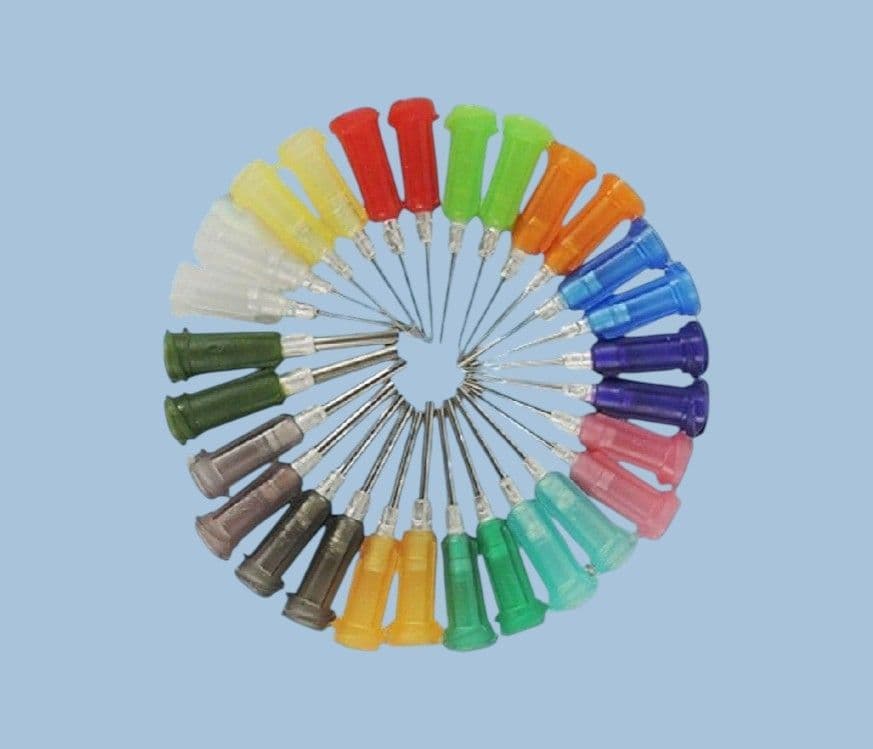

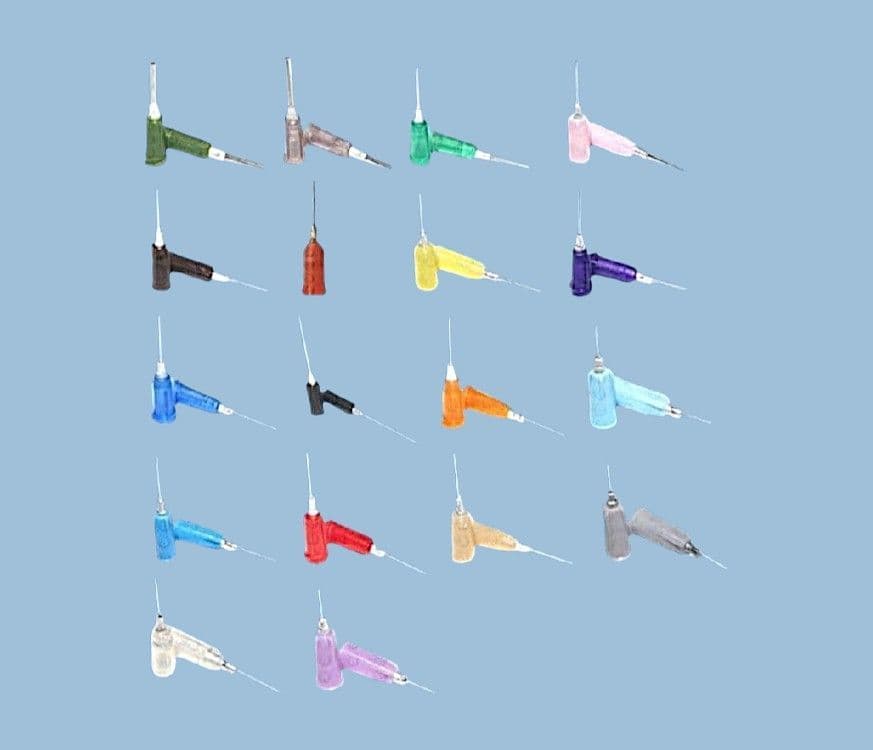

Q: Do hub colours indicate gauge size?
Yes. Each hub colour follows industry‑standard gauge identification for quick selection.
