12oz Syringe Filling Station AD120MF

12oz Syringe Filling Station AD120MF
Product Code: AD120MF

Size: 12oz/ 355ml. Max Pressure: 100 PSI. Retainer: Metal. Type: Valve Activation.

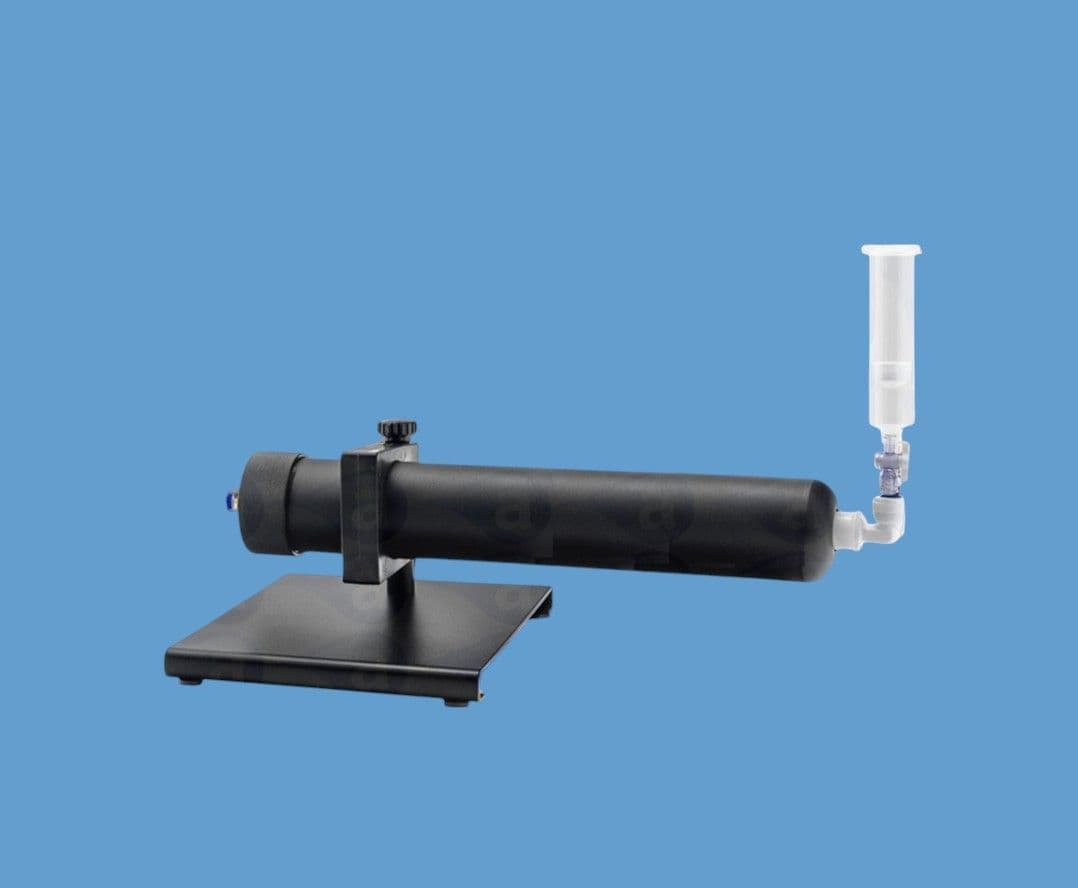

The model AD120MF loads a barrel directly from a 12oz (355cc/ml) cartridge. This barrel loader is connected to an air regulator and set to a pressure suitable for the material but less than 100psi (7 bar). A manual lever valve between the cartridge and the syringe allows fluid flow and is switched off when the material reaches the desired level. This system does not require connection to a dispenser. It will run directly from a compressed air supply.

The barrel attachment assembly is threaded to accept all luer lock barrels. This version of loader has a metal body retainer and cap. If used with a foot pedal dispenser, the lever valve is removed and the dispenser controls ON/OFF mode.


Part ID: AD120MF
Materials: Stainless Steel/ Nylon
Capacity: 12oz (355cc/355ml)
Weight: 1.5kg
Max Pressure: 100 PSI (7 Bar)
Warranty: 12 Months
Commodity Code: 90289090


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Price: £305.15   Exc VAT
  • Product Brand:ADL
  • MPN: AD120MFLead Time: 5-7 DaysMax Pressure: 100 PSI
