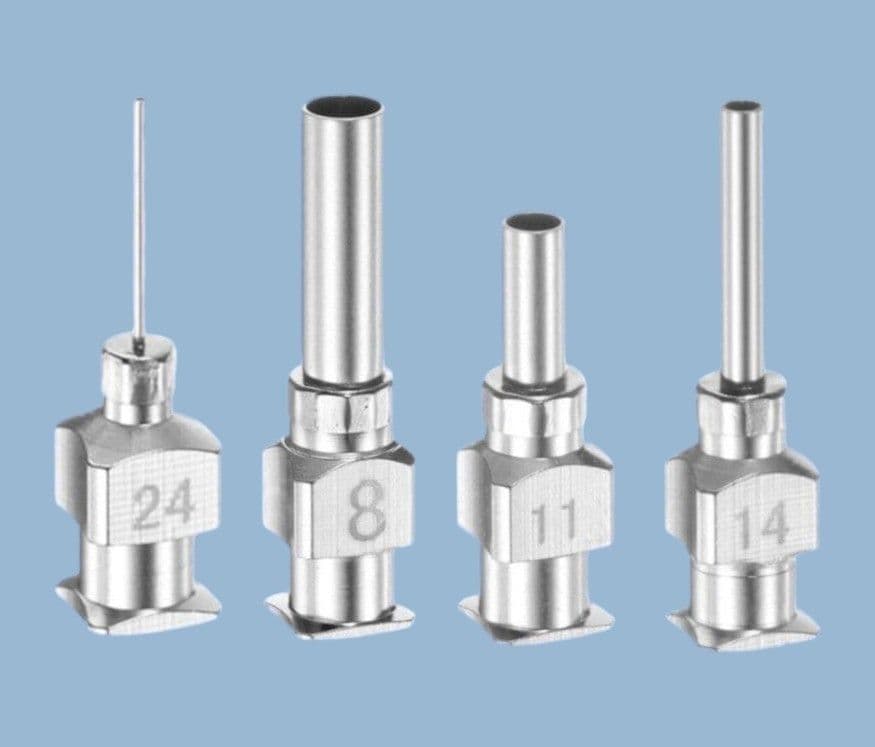

Precision blunt end stainless stainless steel tube to nickel plated brass luer lock hub. Use this tip for dispensing adhesives, solvents, glues, primers, activators and many other fluids. Especially useful for aggressive solvents. A blunt end metal shaft length from 1/4" to 1.5".

The ADSS needle series consist of a nickel plated brass luer lock hub with stainless steel precision shaft. This high quality line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, SMT adhesives and solvents. Industrial grade safe for use to 100 psi. Ideal for use on robot dispensing systems as tips are cut high precision for total consistency. Supplied in a sealed pack of 12 tips.

Part ID: AD11SS
Materials: Brass/ Stainless Steel
Colour: Silver Metal
Inner Diameter: 0.091" - 2.30mm
Outer Diameter: 0.116" - 2.95mm
Tube Lengths: 0.25", 0.50", 1.0", 1.5"
Maximum Pressure: 100 PSI
Connection: Luer Lock
Brand: Adhesive Dispensing Ltd
Commodity Code: 90289090
Pack Size: 12 Pieces

Dispensing tips are designed to work with standard syringes and fittings. These tips are fully compatible with most low, medium and high viscosity fluids, adhesives, inks, pastes, gels and lubricants.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
