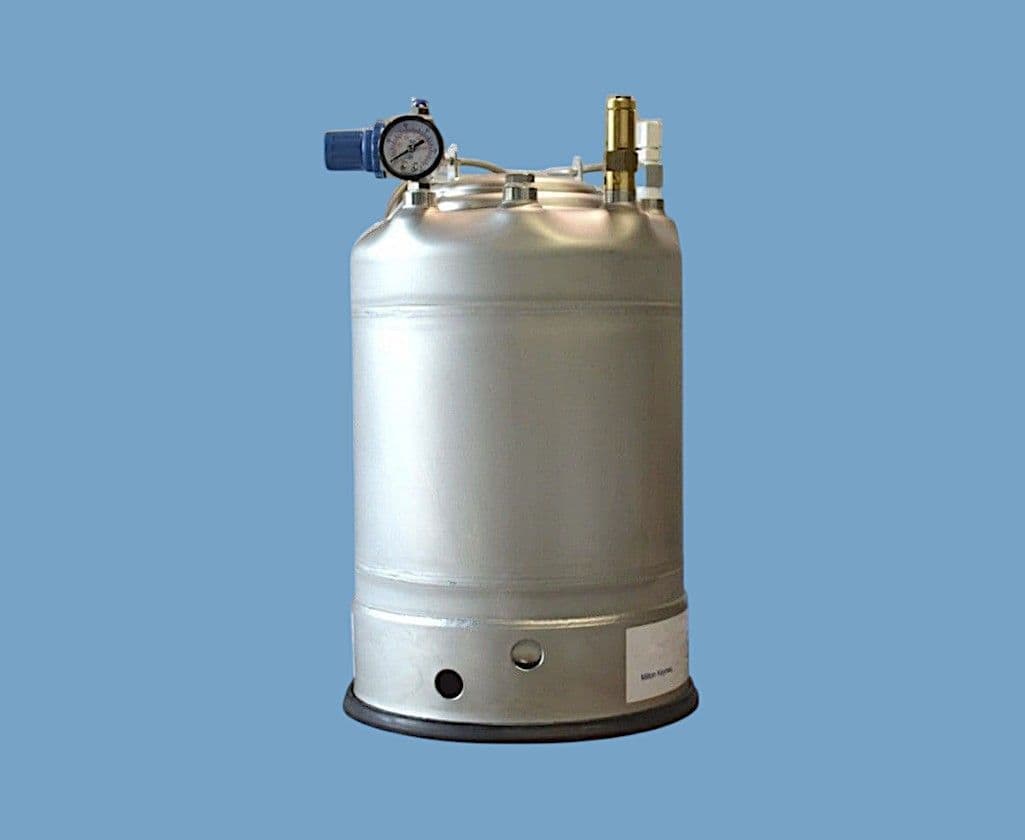

11.4 Litre Pressure Pot 0-100 PSI AD1140CL-LTSS

11.4 Litre Pressure Pot 0-100 PSI AD1140CL-LTSS Adhesive Dispensing Ltd
11.4 Litre Pressure Pot 0-100 PSI AD1140CL-LTSS Adhesive Dispensing Ltd
11.4 Litre Pressure Pot 0-100 PSI AD1140CL-LTSS
Product Code: AD1140CL-LTSS

316 Stainless Steel. 233mm W x 443mm H. Chamber: 229mm W x 387mm H. 7kg. Max 100 psi.
The AD1140CT-LTSS 11.4 litre pressure pot is designed to accommodate most low to medium fluids, adhesives, solvents and UV's. Pot accommodates 1/4" OD feed tubing with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the metering valve. Airtight seals ensure no leakage problems. Built in adjustable 100 psi air regulator and gauge. Wide open mouth for easy access. Handles fluid viscosity up to 35,000 cps. Air port quick connect fitting and top ported outlet. Type 316 stainless steel. Capacity - 3 US gallons. With adjustable air regulator and gauge.
Part ID: AD1140CL-LTSS
Weight: 7.0 kg
Dimensions: 233mm Inside Diameter. 443mm Height.
Chamber: 229mm Inside Diameter. 387mm Height
Viscosity Range: Liquids up to 35,000 CPS
Max Fluid Pressure: 100 PSI ( 6.9 Bar)
Air Inlet: 1/4" Thread Inlet
Material Outlet: 1/4" OD or 3/8" OD Tube Connection
Materials: Type 316 Stainless Steel/ Rubber Skit to Boot
Closure Oval: Pressure Closure
Closure Seal: EPDM Rubber O-ring
Certification: ASME Section VIII-01, Div. 1. PED - Module A - Category I - CE marked For group 1 and 2 liquids and group 2 gases
Commodity Code: 90289090
Origin: United States

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Price: £1,950.00   Exc VAT
  • Product Brand:Adhesive Dispensing Ltd
  • Lead Time: Ships Around 2-3 WeeksMPN: AD1140CL-LTSSMax Pressure: 100 PSI
