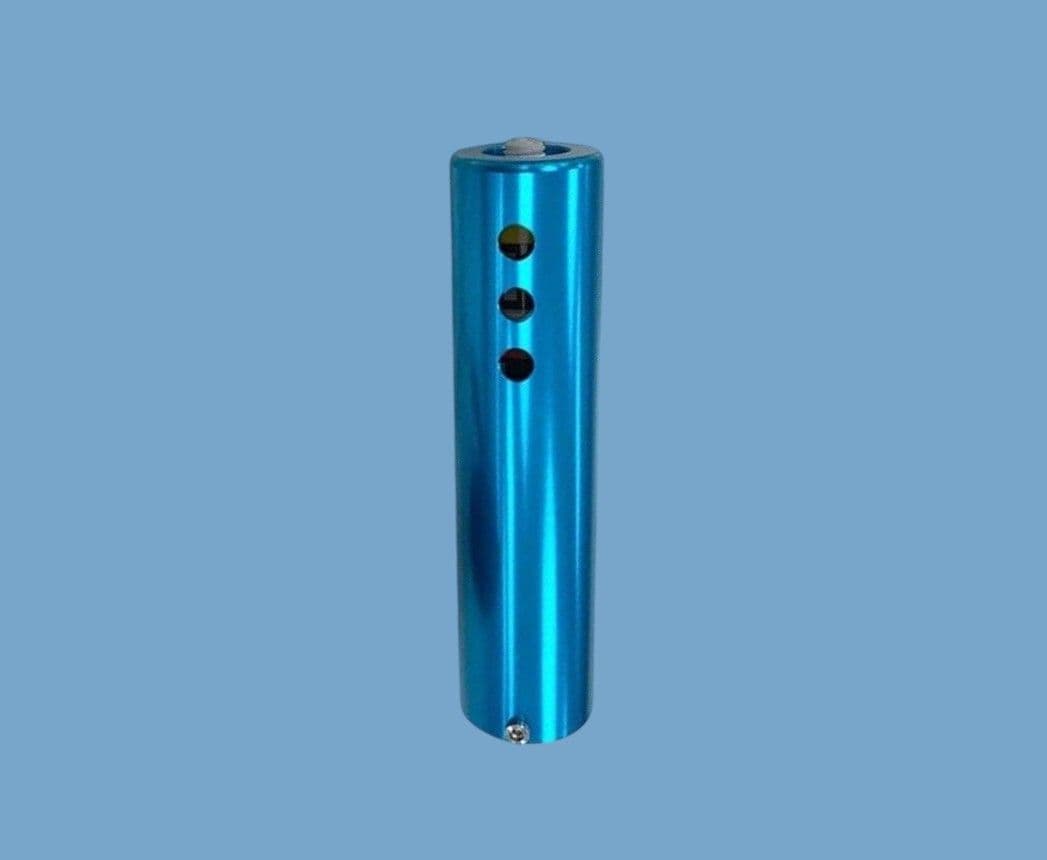

Techcon cartridge retainers / cartridge sleeves hold the plastic dispensing cartridge when attached to the retainer cap or dispensing gun. This retainer is made from durable anodised aluminium and with its 2 metal flange pins, twist-locks onto the retainer cap or dispensing gun.

This item is industrial grade and is suitable for use to 100 PSI air pressure. Item 110-2-C features viewing slots that are strategically placed to see the fluid level inside as the wiper plunger moves down inside the cartridge body. This metal retainer is used with 918-000-036-C air cap.

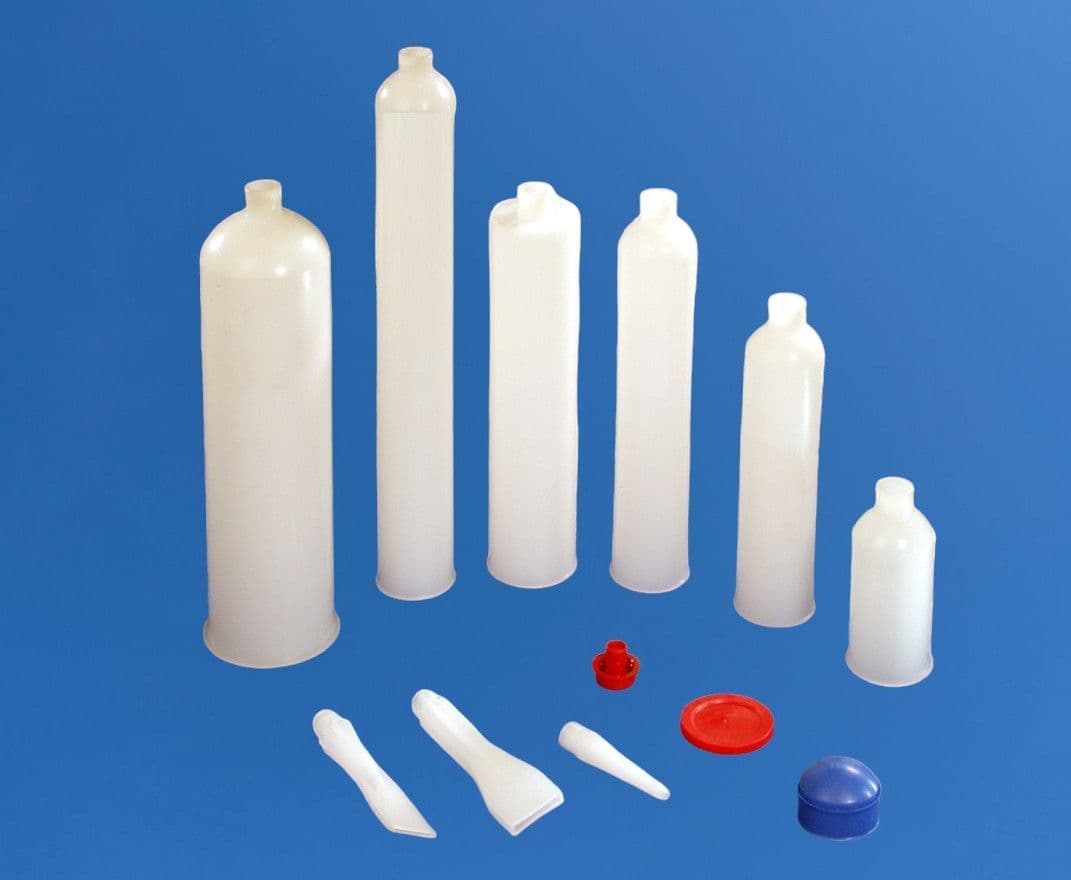

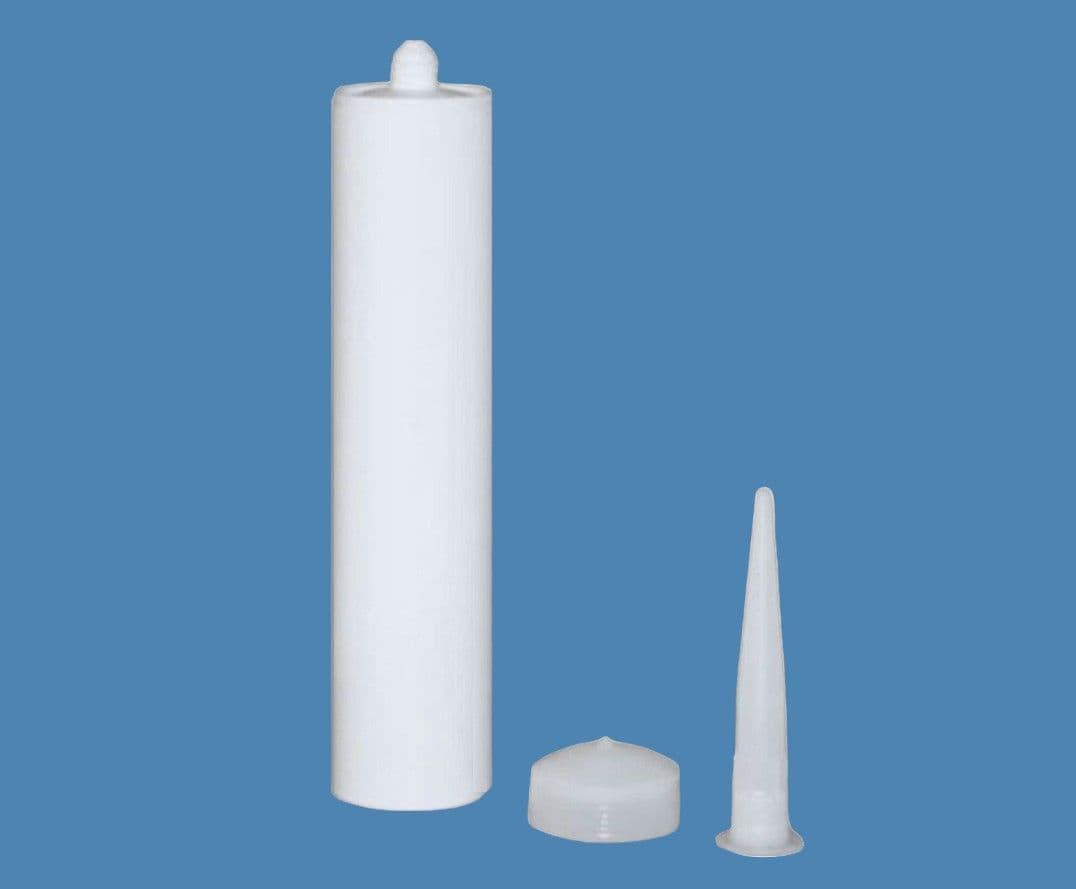

Use with 10 ounce size Techcon, Semco PPG and Nordson EFD plastic cartridges as well as 310ml silicone sealant cartridge tubes. Precision retainer accessories provide safe and leak free fluid dispensing from industrial cartridges.

Key Features
✅ Robust construction for long-lasting performance
✅ Compatible with Techcon, Semco PPG, and Nordson EFD Type 10oz cartridges & 310ml silicone tube cartridges
✅ Easy to clean for hassle-free maintenance
✅ 100 PSI pressure rating for industrial use
✅ Viewing slots to monitor plunger level inside the cartridge
✅ Versatile bayonet attachment to air caps

Specifications
✅ Part ID: 110-2-C
✅ Material: Anodised Aluminium Retainer, Steel Pins
✅ Colour: Black
✅ Maximum Pressure: 100 PSI (6.9 BAR)
✅ Retainer Length: 9.0" (228.6mm)
✅ Retainer Inner Diameter: 1.85" (47.0mm)
✅ Warranty: 1 Year
✅ Commodity Code: 84679200
✅ Country of Origin: USA
✅ Brand: Techcon
✅ Pack Size: 1 Part

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
