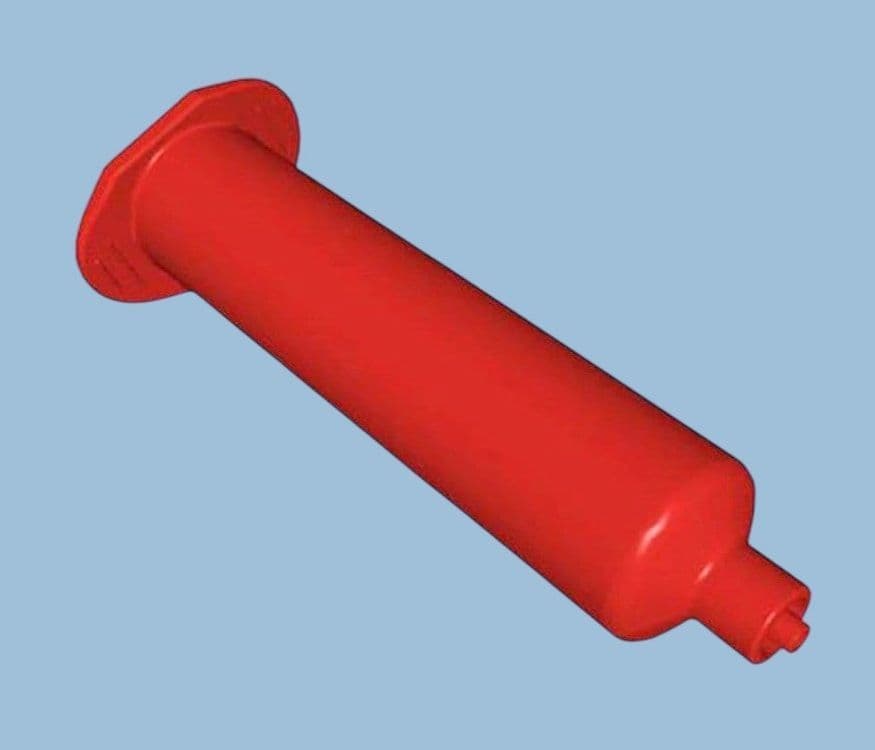

10cc size amber syringe barrel 7100LL1DPK

10cc size amber syringe barrel luer lock AD910-D Adhesive Dispensing 7100LL1DPK Techcon
10cc size amber syringe barrel luer lock AD910-D Adhesive Dispensing 7100LL1DPK Techcon 10cc size amber syringe barrel luer lock AD910-D Adhesive Dispensing 7100LL1DPK Techcon 10cc size amber syringe barrel luer lock AD910-D Adhesive Dispensing 7100LL1DPK Techcon


10cc size amber syringe barrel 7100LL1DPK
Product Code: 7100LL1DPK

Size 10cc (10ml). Length 3.58" (90.93mm). OD 0.72" (18.36mm). ID 0.62" (15.72mm). Amber.
700 Series Premier dispensing syringe barrels are silicone and chloride- free and designed to work with dispensing equipment - either manually or on a pneumatic dispenser. The syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. Features a double Helix Luer lock for secure dispense tip attachment. Supplied in sealed packs of 50 or 1000. Amber provides protection of UV/visible light block (up to 520nm).

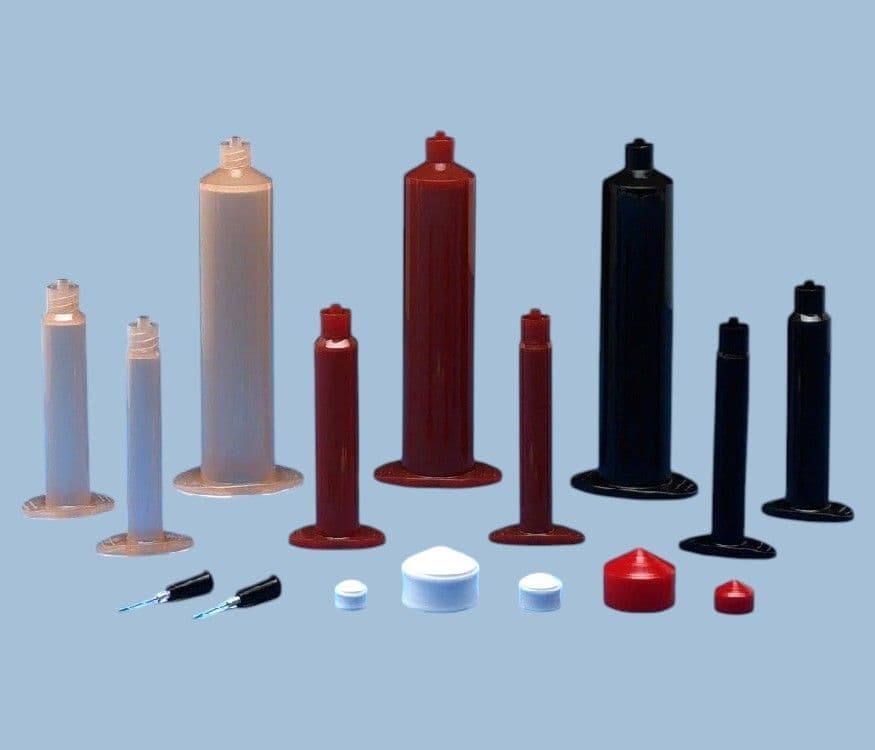

Pistons available for all barrel sizes as well as end caps and adapter assemblies. Maximum operating pressure is 100 psi (6.9bar). Use amber syringes with UV sensitive adhesives and fluids as well as pastes, gels and epoxies.
Material Polypropylene
Capacity 10cc (10ml)
Length 3.58" - 90.93mm
Outer Diameter 0.72" - 18.36mm
Inner Diameter 0.62" - 15.72mm
Colour Amber
Commodity Code: 39269097
Mfg.: Techcon Systems
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Pack Size Options
Price: £52.10   Exc VAT
  • Product Brand:Techcon
  • MPN: 7100LL1D-1000Lead Time: Ships 24 Hours - Stock ItemPack Size: 1000
Write a Review

Write an online review and share your thoughts with other shoppers!

Be the first to review this product

These barrels are supplied ready to insert a wiper piston once liquid or paste is placed inside. Use white wiper piston for general, blue easy flow for less restrictive fit and red flat wall for string, viscous gels. All products are industrial grade and ship direct from stock from our UK warehouse.
