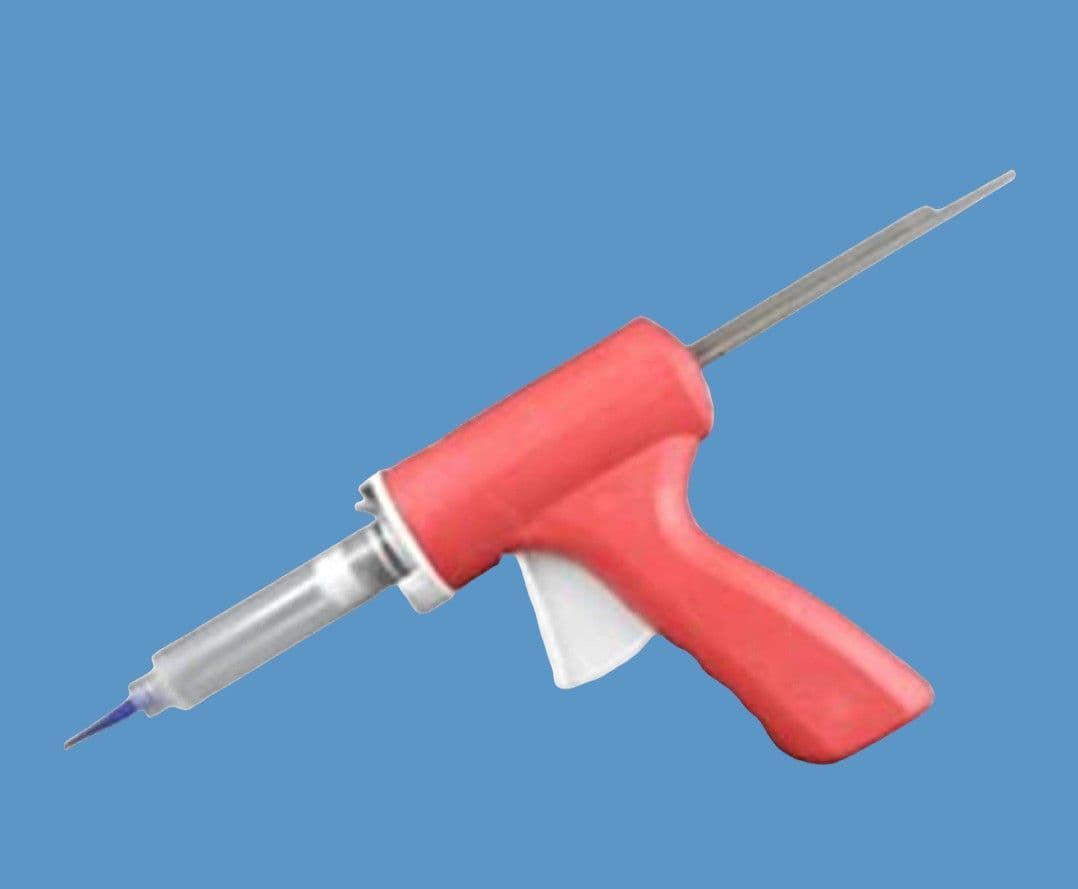

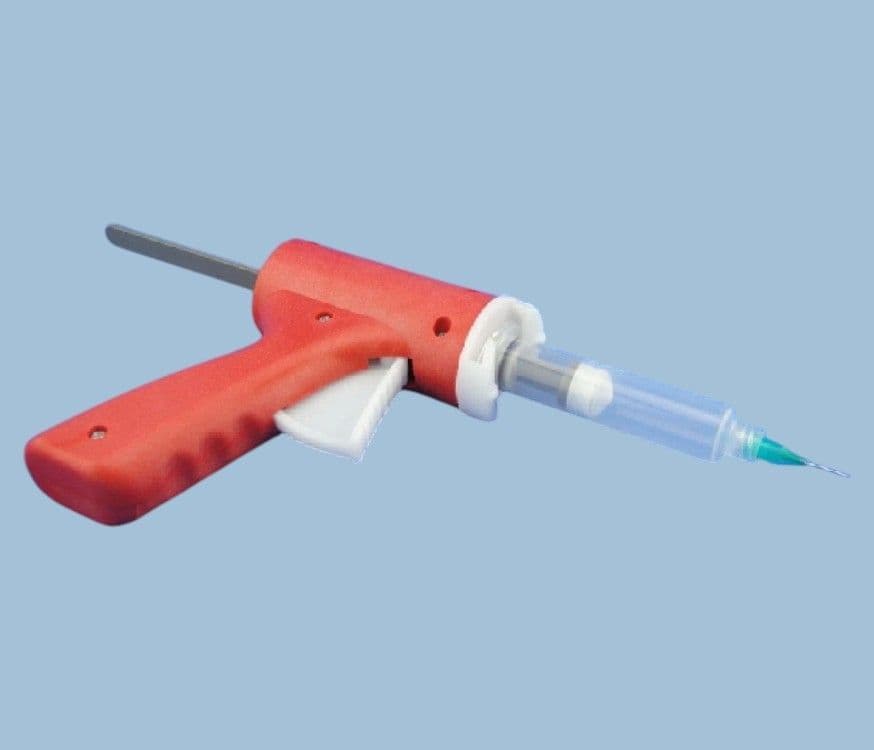

TS710SG‑AD - Manual Syringe Gun Dispenser (10cc/10ml)

Precision Hand‑Operated Dispenser for Pastes, Gels & Adhesives

The TS710SG‑AD Syringe Gun is a premium manual dispenser designed for the accurate application of pastes, gels, adhesives and other assembly materials. Ideal for low‑volume production, repair, re‑work, prototyping and field applications, this lightweight, ergonomic tool provides exceptional control without the need for compressed air or power.

Engineered with a 7:1 mechanical leverage ratio, the TS710SG‑AD delivers smooth, effortless trigger movement. Each press advances the plunger rod by 3mm (1/8"), ensuring consistent deposits with no drips, no oozing and no adhesive waste. Barrel replacement is fast and simple using the top‑button plunger release and secure bayonet attachment.

Supplied as a complete starter kit, the TS710SG‑AD includes a syringe barrel, wiper piston, end caps, tip caps and a selection of precision dispensing tips. Spare O‑rings are available from stock in both EPR rubber and Viton rubber, with one spare included in every pack.

Choose from 10cc, 30cc or 55cc syringe gun sizes to suit your dispensing requirements.

Key Features

• Manual precision dispenser for pastes, gels, adhesives and assembly fluids

• 7:1 mechanical advantage for effortless trigger movement

• 3mm plunger stroke per press for controlled, repeatable deposits

• Quick‑release plunger system for fast barrel changeovers

• Secure bayonet barrel attachment

• Compatible with 10cc/10ml luer‑lock syringe barrels

• Includes assorted tapered and precision tips

• Lightweight, portable and ideal for bench‑top or field use

• Spare O‑rings available (EPR & Viton)

• Optional bench stand available

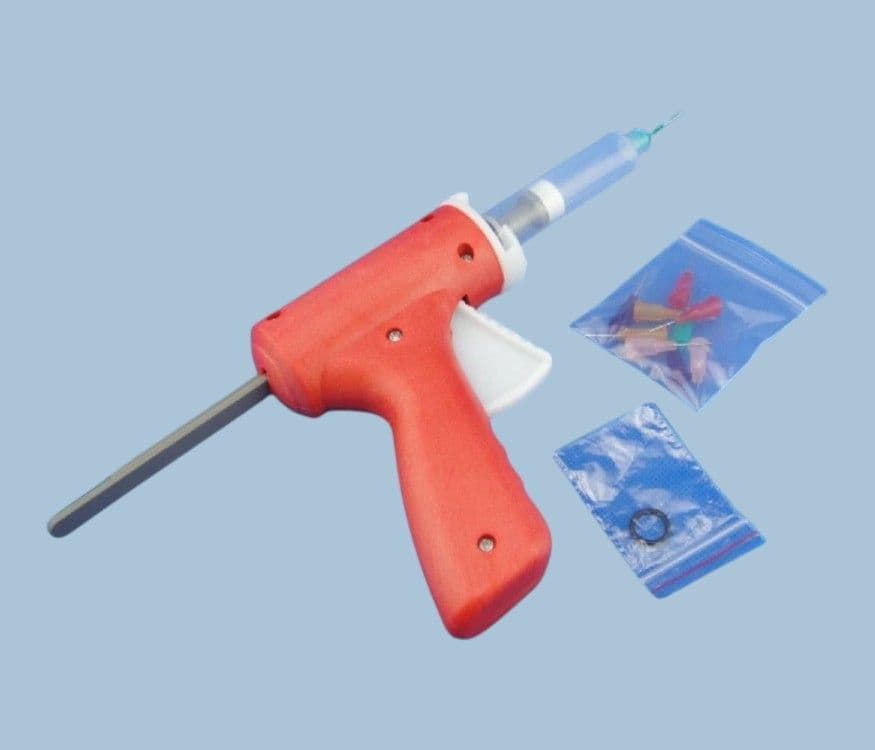

What’s Included

• 1 × TS710SG‑AD manual syringe gun

• 1 × 10cc luer‑lock syringe barrel (Clear, Black or Amber – AD910‑N, AD910‑B or AD910‑D)

• 1 × 10cc white wiper piston (AD910‑WW)

• 1 × 10cc barrel end cap (AD910‑ECO)

• 1 × Orange tip cap (AD900‑ORTC)

Dispensing Tips Included:

• 1 × Smooth‑flow tapered tip 14 gauge (olive) – TTN14

• 1 × Smooth‑flow tapered tip 16 gauge (grey) – TTN16

• 1 × Smooth‑flow tapered tip 18 gauge (green) – TTN18

• 1 × Precision ½" tip 14 gauge (olive) – AD714050

• 1 × Precision ½" tip 18 gauge (green) – AD718050

Technical Specifications

• Part Code: TS710SG‑AD

• Barrel Size: 10cc / 10ml

• Gun Length: 215.0 mm

• Maximum Thrust: 1.5 kN

• Handle Material: Glass‑Filled Nylon

• Frame Material: Glass‑Filled Nylon

• Tool Approvals: REACH Compliant

• Cartridge Capacity: 10 ml (10cc)

• Mechanical Advantage Ratio: 7:1

• Viscosity Range: Low / Medium

• Standard Body Colour: Red

• Materials: Polypropylene / Reinforced Nylon

• Weight: 0.1 kg (0.2 lbs)

• Warranty: 1 Year

• Commodity Code: 39269097

• Brand: Adhesive Dispensing Ltd

Compatible Materials

Perfect for dispensing:

• Pastes & gels

• Cyanoacrylates

• RTV silicones

• Greases & lubricants

• Single‑part epoxies

• Primers & activators

• Inks & paints

• Craft glues & wood glues

• General assembly adhesives

Applications

Ideal for:

• Electronics assembly

• Aerospace & automotive repair

• Medical device manufacturing

• Maintenance & re‑work

• Field service applications

• Prototype and small‑batch production

Why Choose the TS710SG‑AD?

• No air supply required - fully manual operation

• Exceptional control for delicate assembly tasks

• Complete starter kit included

• Industrial durability with reinforced materials

• Portable and lightweight for bench or field use

• Cost‑effective alternative to pneumatic dispensers

Complete Dispensing Solutions

Adhesive Dispensing Ltd offers a comprehensive range of dispensing equipment for all assembly fluids - from watery liquids, solvents and primers to thick pastes, sealants, silicones, gels and epoxies. Our solutions ensure clean, accurate and repeatable results across all manufacturing sectors.
