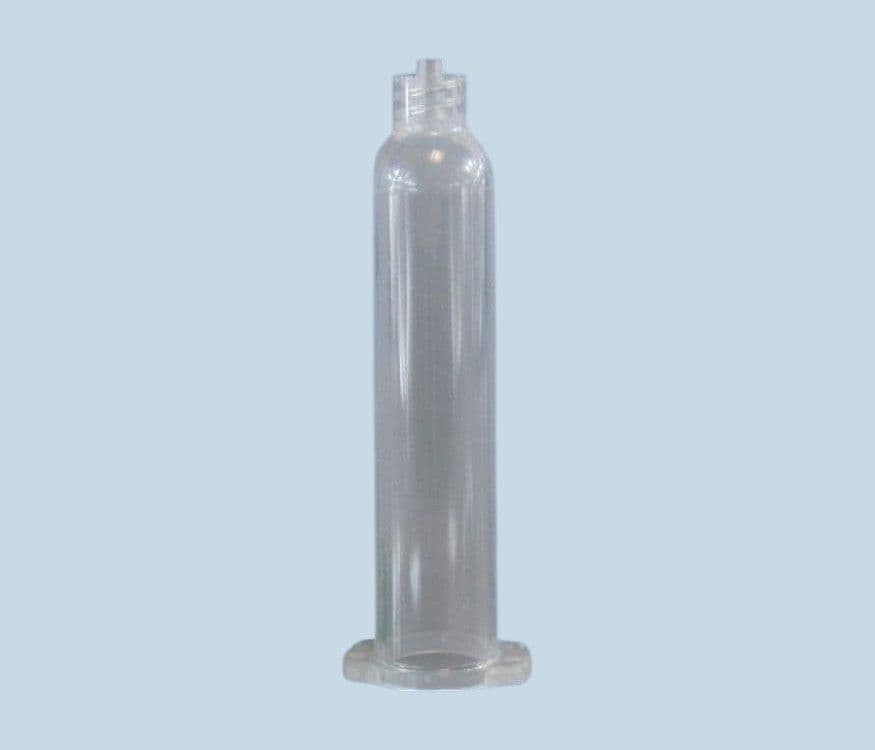

Fisnar 10cc Clear Dispensing Barrel - Industrial‑Grade Silicone‑Free Syringe Barrel
This high‑performance Fisnar 10cc dispensing barrel is engineered for precision application of adhesives, sealants, gels, pastes and solvent‑based liquids. Manufactured from low‑friction polypropylene, the barrel ensures smooth material flow, consistent dispensing and repeatable results in both manual and pneumatic systems.
Each barrel is silicone‑free and chloride‑free, making it suitable for contamination‑critical environments such as electronics assembly, aerospace manufacturing and medical device production. The double‑helix luer‑lock connection provides a secure twist‑on fit for all standard dispense tips, ensuring leak‑free performance under demanding conditions.
Supplied in sealed packs, the natural (clear) colour allows full visibility of material levels, making it ideal for most adhesives, fluids and production processes.
A full range of compatible wiper pistons, end caps and adapter assemblies is available. Pistons improve flow control, prevent air pockets and enhance dispensing performance for both watery liquids and thick pastes.
Key Features
- Low‑friction polypropylene for smooth, controlled dispensing
- Silicone‑free and chloride‑free for sensitive materials
- Double‑helix luer‑lock for secure tip attachment
- Clear natural colour for easy material visibility
- Compatible with manual and pneumatic dispensers
- Rated to 100 PSI for industrial applications
- Compatible with wiper pistons, caps and adapter assemblies
Technical Specifications
- Material: Polypropylene
- Colour: Clear (Natural)
- Length: 3.58" (90.93mm)
- Outer Diameter: 0.72" (18.36mm)
- Inner Diameter: 0.62" (15.72mm)
- Maximum Pressure: 100 PSI
- Barrel Size: 10cc / 10ml
- Commodity Code: 39269097
- Brand: Fisnar
Applications
- Adhesive dispensing (epoxies, silicones, acrylics)
- Lubricants, gels and pastes
- Solvent‑based liquids and primers
- Electronics assembly and PCB work
- Aerospace sealant application
- General industrial fluid control
Frequently Asked Questions (FAQ)
Q: What materials can be dispensed with this barrel?
It is suitable for epoxies, silicones, gels, pastes, lubricants, primers, solvents and most industrial fluids.
Q: Is the barrel compatible with pneumatic dispensers?
Yes - it is rated for up to 100 PSI and works with all standard pneumatic dispensing systems.
Q: Are these barrels silicone‑free?
Absolutely. They are silicone‑free and chloride‑free, ideal for contamination‑sensitive applications.
Q: What dispense tips fit this barrel?
Any standard luer‑lock dispensing tip, including stainless‑steel, tapered and polypropylene tips.
Q: Should I use a piston?
Yes - pistons are recommended for:
- Thick pastes and gels (prevent air gaps)
- Watery liquids (improve flow and reduce drips)
Q: What pack sizes are available?
Barrels are supplied in sealed packs with batch‑coded traceability.
Q: Is the barrel suitable for UV‑curable adhesives?
This clear version is suitable for most materials, but for UV‑curable adhesives a black UV‑block barrel or amber tinted barrel is recommended.
