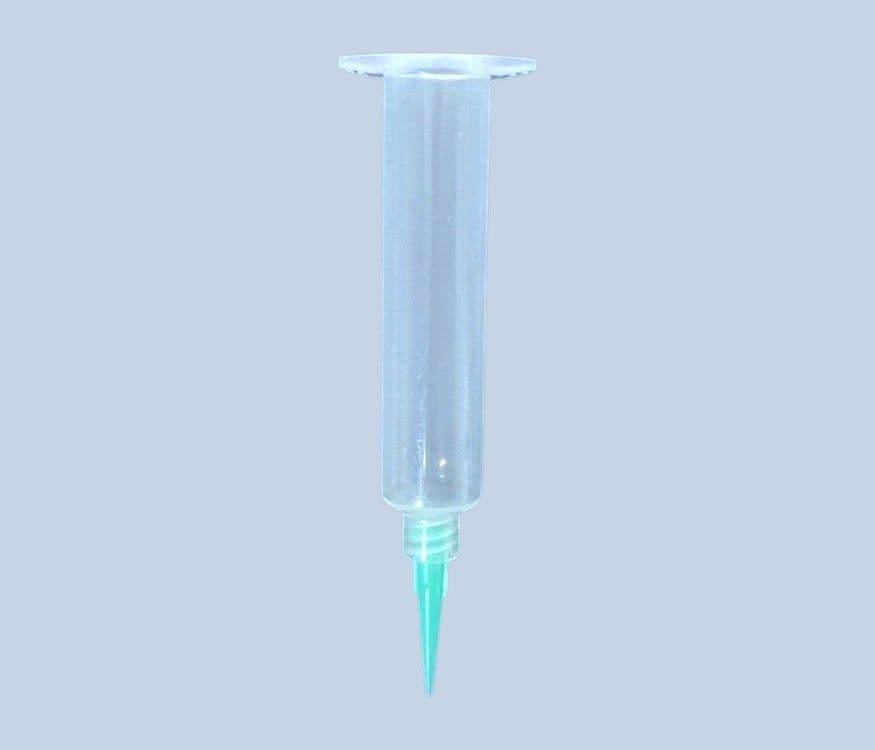

Part AD910T-18 are industrial grade 10cc/ 10ml size syringe barrels with tip used for dispensing glues, adhesives, gels, inks, paints, primers, greases and most other fluids.
The barrel is natural (clear) colour for use with all adhesives and the tip is green. Fluid can be visible at all times. These barrels are constructed of high density polypropylene which means they are safe for use up to 100 psi on dispensing machines but this barrel can also be used with the rubber piston and plastic plunger rod for manual use. They have precision flanges for safe attachment to the 900 series receiver assembly which connects these barrels directly to a pneumatic dispenser.
The outlet has a pre-attached smooth flow tapered tip with an approx. 0.84mm ID hole. When used on a pneumatic dispenser, use these with 900 series plastic wiper pistons. These syringes are industry compliant silicone free, low friction polypropylene and pricing is for packs of 50. All packs are labelled to include part code and batch code.
Part Code: AD910T-18
Material: Polypropylene
Barrel Colour: Clear (Natural)
Tip Colour: Green
Capacity: 10cc (10ml)
Outer Diameter: 0.72" - 18.35mm
Inner Diameter: 0.61" - 15.50mm
Tip Outlet ID: 0.033" - 0.84mm
Total Length: 4.72" - 120.0mm
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Brand: ADL
Pack Size: 50 pcs
