Techcon branded 700 series premium dispensing syringe barrel components are designed to work with dispensing equipment - either manually or on a pneumatic dispenser. Dispensing components are silicone and chloride free and ensure accuracy, repeatability and productivity. Component sizes 3cc, 5cc, 10cc, 30cc and 55cc.

Precision components provide safe and leak free fluid dispensing from syringe barrels. Easy flow blue pistons wipe the inner walls of the syringe barrel to ensure liquids are dispensed without mess or material waste. Products are supplied with a no-quibble guarantee against fault or defect.

Pistons ensure that the pressure is evenly spread across the fluid surface to provide consistent dispensing. Maximum operating pressure is 100psi (6.9 bar). Supplied with labels and batch codes. These quality products are supplied in sealed packs to prevent contamination and we hold extensive stocks of most items. If you have any questions regarding selecting the best barrel piston, pricing or deliveries, please feel free to contact us.

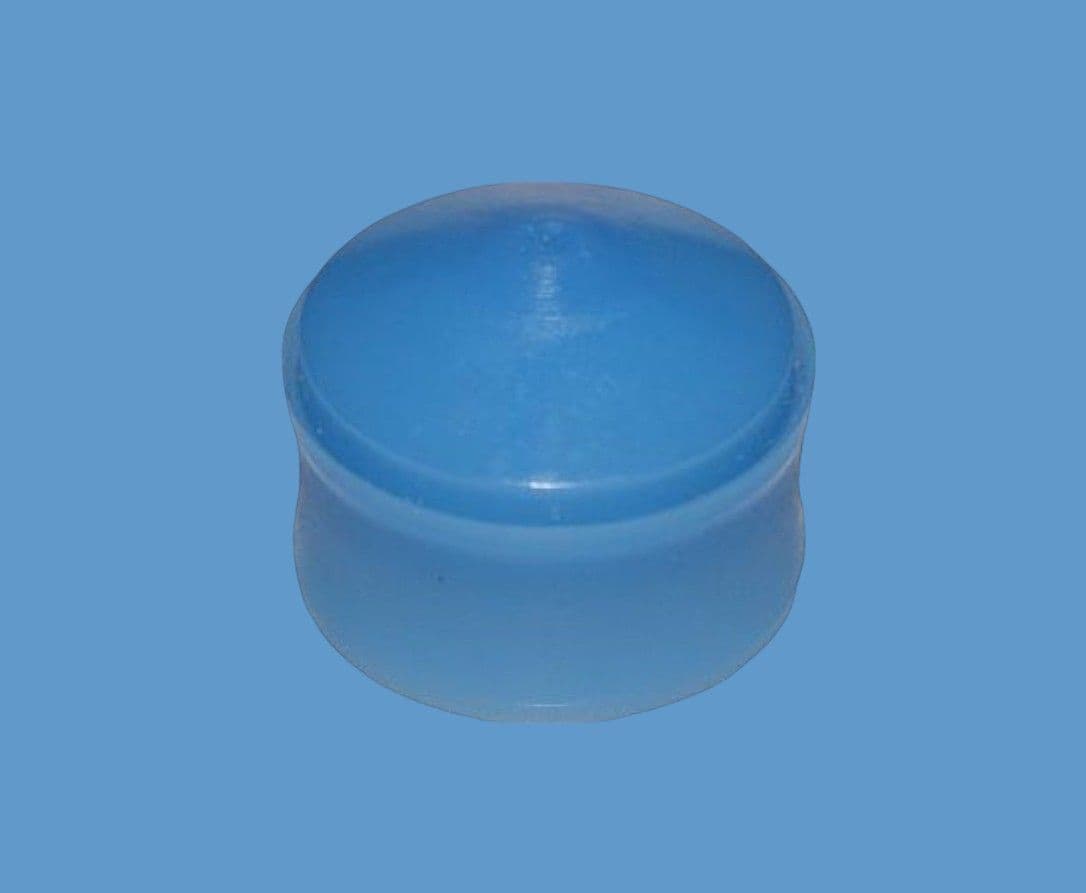

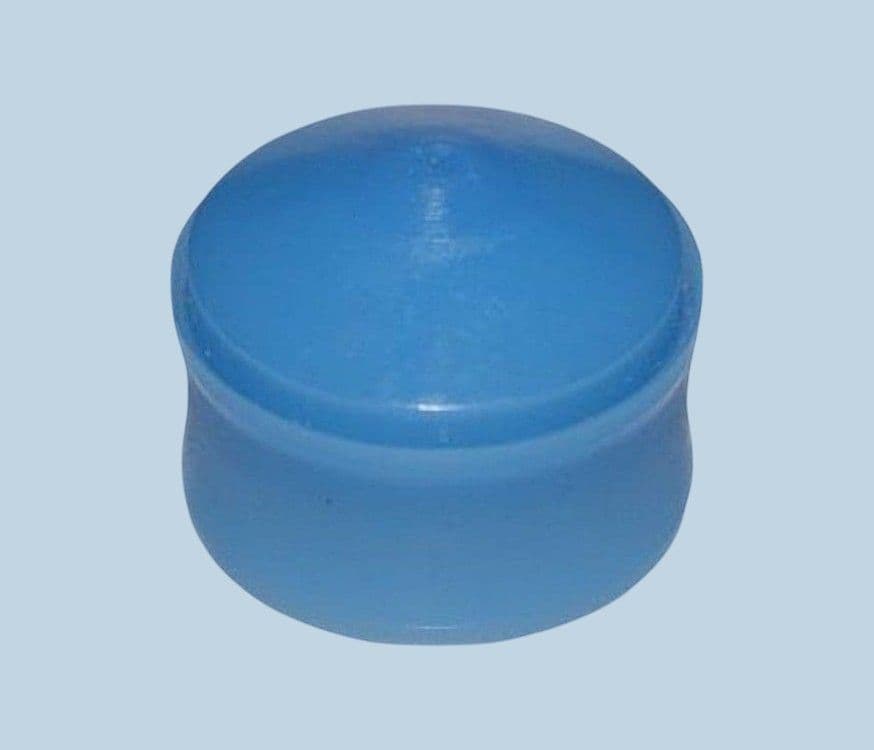

Specifications:
Part ID: 7100007BLPK
Material: Low Density Polyethylene (LDPE)
Colour: Blue
For Barrel Size: 10cc
Height: 12.00mm
Outer Diameter: 15.72mm
Brand: Techcon Systems
Commodity Code: 39269097
Lead Time: Ex Stock

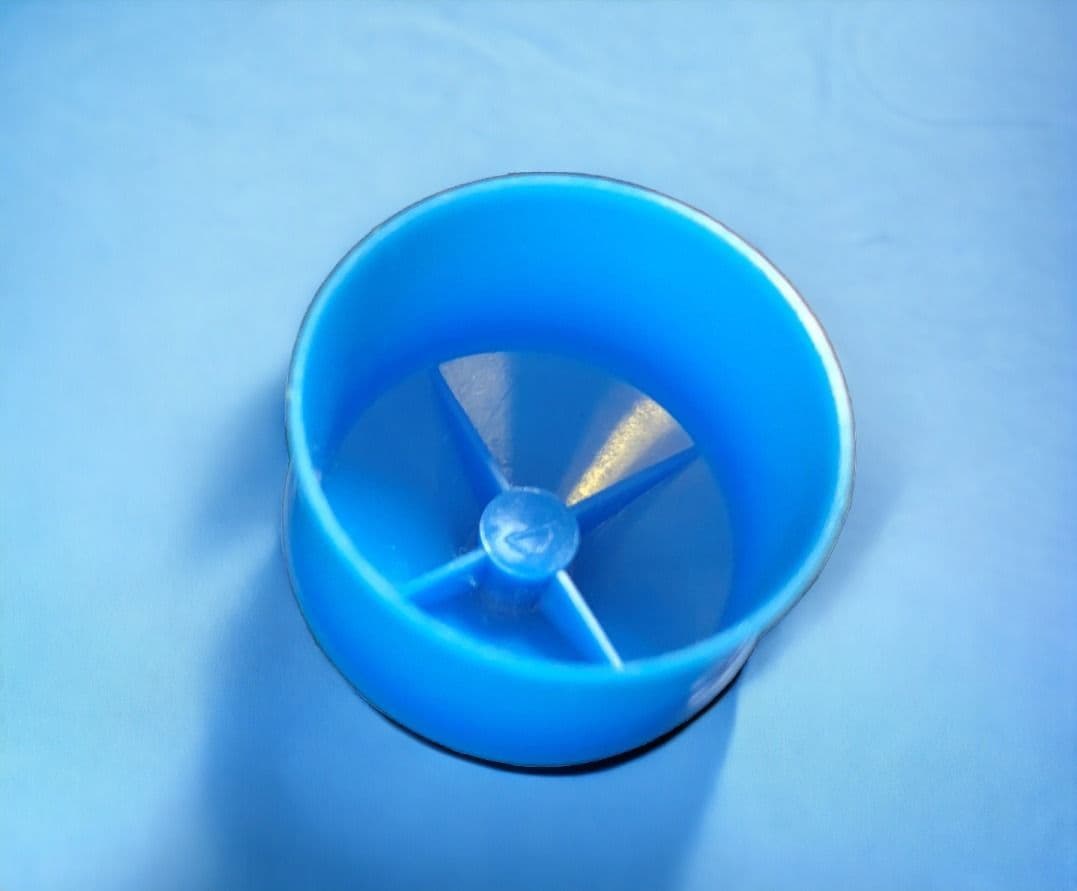

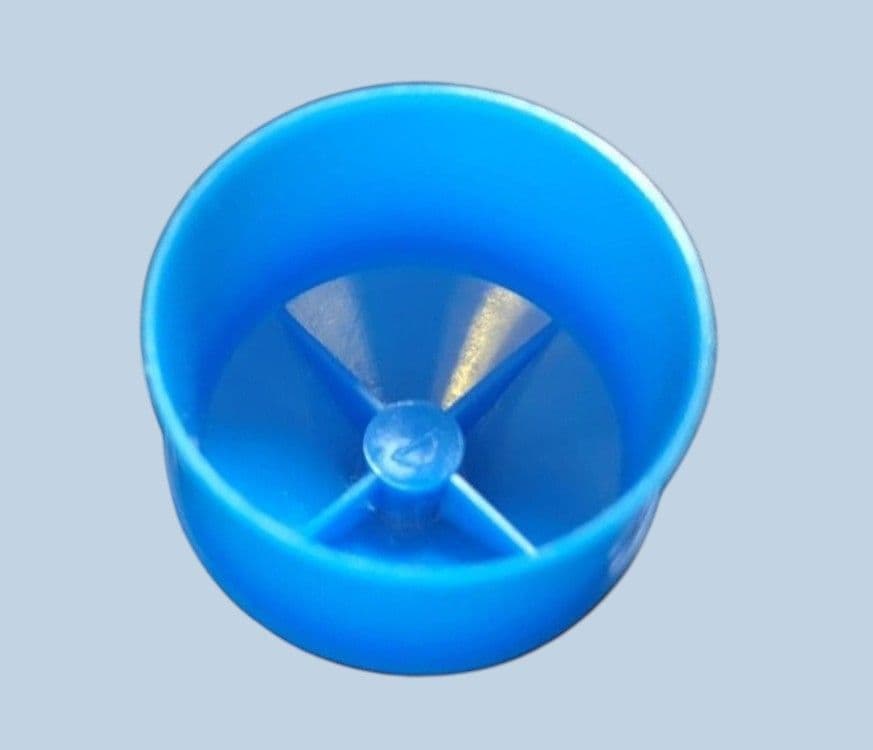

Pistons are made of plastic and have dual blades to wipe the adhesive, paste or liquid from inside the syringe barrel as they move down. The blades also act to stop liquids from going past them as they dispense.

Once a syringe has liquid inside, insert the piston and push down on one side. This will allow air to escape and ensures the piston sits directly on the fluid without an air gap. When bottom filling using the syringe barrel filler, the piston is pushed down and moves up as the liquid is fed into the syringe barrel.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
